Keithley DMM7510 Bench 7.5 Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 700V ac Max, Мультиметр

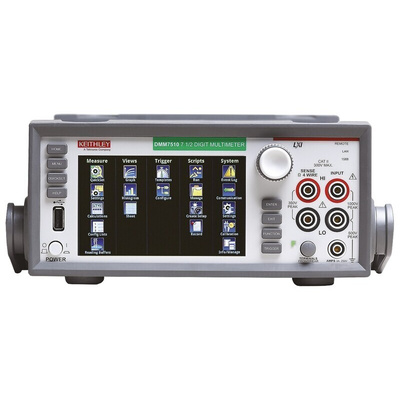

Keithley DMM7510 7-digit Graphical Sampling Multimeter

Keithley DMM7510 7 digit precision graphical sampling digital multimeter is a high-resolution multimeter. The DMM7510 combines all the advantages of a precision digital multimeter with a touch screen display, high-speed performance and high resolution digitiser. The whole package provides you with one of the first graphical sampling digital multimeters. This multimeter gives you unprecedented flexibility of signal analysis together with ease in observing, interacting with and exploring measurements using 'pinch and zoom'. The DMM7510 with pA-level sensitivity and 1Msample/s sampling accurately measures ultra-low sleep mode currents and transmit drain currents for wireless devices.

Features and Benefits:

3 to 7 digit resolution
14 PPM basic one-year DCV accuracy
100mV, 1Ω and 10μA ranges for sensitivity to measure low level signals
Accurate low resistance measurements with offset-compensated ohms, four-wire and dry circuit functions
Capture and display waveforms or transients with 1MS/s digitizer
Large internal memory buffer
Auto-calibration feature

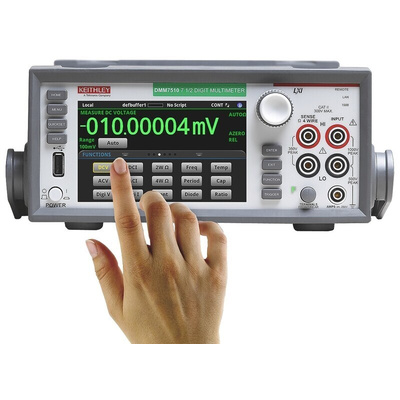

5-inch, high resolution touchscreen interface
Front panel USB memory port

Additional Features:

Best accuracy, low noise
Digitising rate 1000000 reading/s
Measures current drain in all IoT devices operating states
Capture μA sleep mode currents
Transmit currents up to 1 A combining sensitive and fast current measurements
Measures low signals with high sensitivity
Captures and stores more than 27 million readings
Observe, interact with and explore measurements
Connectivity GPIB / USB (TMC) LAN (LXI)

What Is Included?

Test Leads
USB Cable
TSO-Link/Ethernet cable
CD Documentation and qucik start guide plus
Test script builder software
KickStart Startup software
LabVIEW and IVI Drivers

Supplied with

Keithley DMM7510 Graphical Sampling Digital Multimeter 7.5 digit, True RMS, 10A ac Max, 10A dc Max, 700V ac Max

The DMM7510 7.5 digit multimeter combines a precision, high-resolution digital multimeter (DMM), graphical touchscreen display, and high-speed, high-resolution digitizer to create the first graphical sampling multimeter. With pA-level sensitivity and 1Msample/s sampling, it accurately measures ultra-low sleep mode currents and transmit drain currents from wireless devices. With a low noise input stage and a 32-bit A-D converter, the DMM7510 embodies Keithley's low level measurements expertise to deliver DC accuracies typically only found in metrology-grade instrumentation. Capture a complex waveform profile, study long-term stability, or record environmental and life testing data easily. The DMM7510's large internal memory buffer enables extensive reading storage of your device's complete profile.

Features and Benefits

• 14 PPM basic one-year DCV accuracy
• 100mV, 1Ω and 10μA ranges for sensitivity to measure low level signals
• Accurate low resistance measurements with offset-compensated ohms, four-wire and dry circuit functions
• Capture and display waveforms or transients with 1MS/s digitizer
• Large internal memory buffer
• Auto-calibration feature
• 5-inch, high resolution touchscreen interface
• Front panel USB memory port
• Connectivity GPIB / USB (TMC) LAN (LXI)
• Brand New full feature KickStart instrument control software

Accessories

DMM Accessories:
RS Stock No. 2409943 1754 (Safety Universal Test Lead Kit)
RS Stock No. 2409949 5804 (4 Terminal Test Lead Set)
RS Stock No. 2409950 5805-12 (Kelvin Probes 3.6M)
RS Stock No. 2409951 5808 (Low Cost Single Pin Kelvin Probe Set)
RS Stock No. 2409953 8501-1 (Trigger Link Cables W/DIN Con)
RS Stock No. 7600341 KPCI-488LPA (Low Profile IEEE-488 Interface Board)
RS Stock No. 7600345 KUSB-488B (IEEE-488.2 USB-TO-GPIB Interface Adapter)

Software Options
Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

For full list of accessories, application and software options, please see datasheet

Software Updates

Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

For full list of accessories, application and software options, please see datasheet

Keep your instrument up to date and to enhance the functionality, please visit Tektronix website for the latest software updates at https://www.tek.com/en/products/software

Applications

Automotive
Battery Testing
Embedded Design
Power Measurements and Analysis
Education
Manufacturing test/troubleshooting
