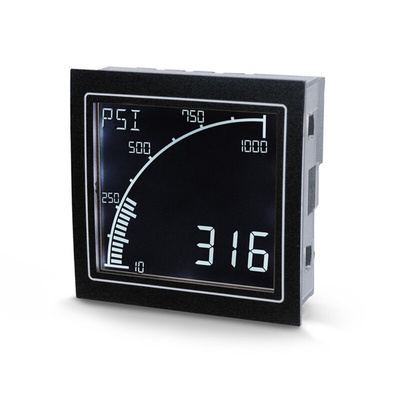

Trumeter Process Meter

The Trumeter process meter is the most visible, easy to use, multi-format, programmable panel meter. This utilises user-configurable, non-linearization techniques that can customise performance. The non-linear sensors (such as thermocouples) can be used to maximum potential. It offers a programmable scale and custom annunciators that help you tailor it to display critical parameters exactly when a parameter is out of range. The 2 outputs can be used to connect the process meter to other systems in the process. It measures the current and voltage.

Features and Benefits

0V to 10V, 0mA to 50mA input range

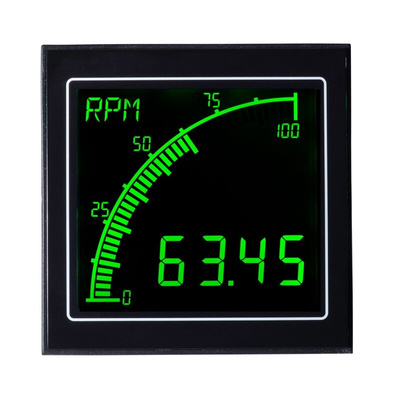

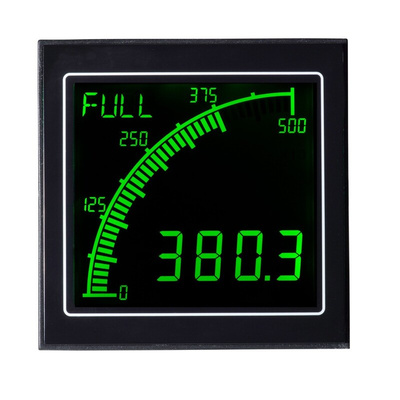

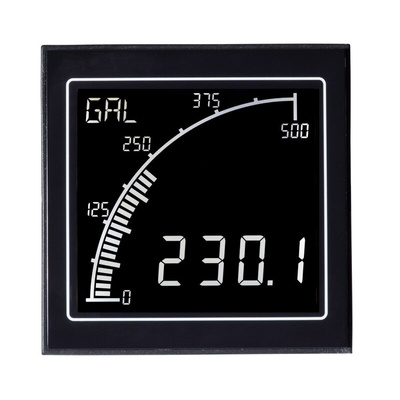

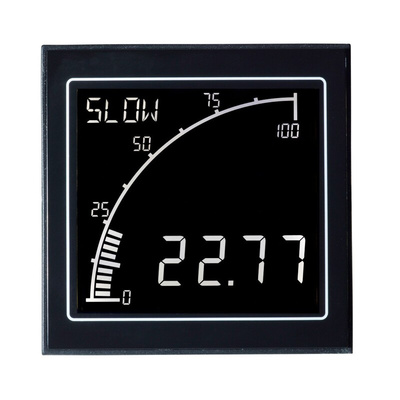

Large, 4-digit, negative LCD display
40-segment bar graph display
Separate starburst display area for annunciators, custom messages and alarm information

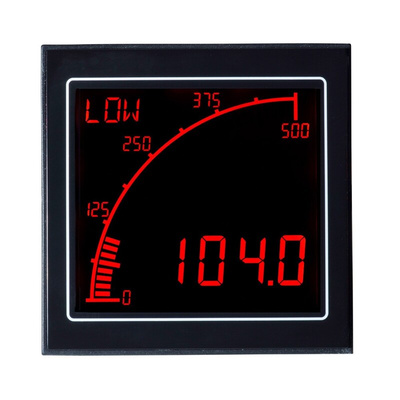

User-adjustable back light brightness, colour and intensity
Wide viewing angle
Custom annunciators

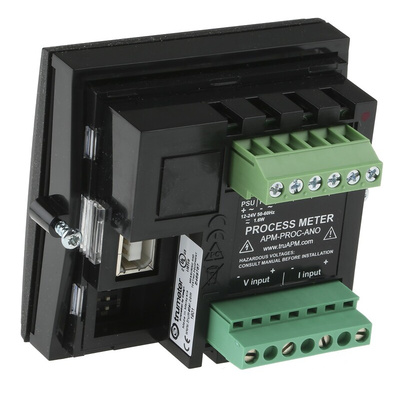

2 independent outputs
2 independent alarm set-points
4mA to 20mA analogue monitor output
USB port to connect to PC for custom user settings
Use configurable non-linearization table
Cut-out height of 68mm, width of 68mm and depth of 53mm
Operating temperature ranges between -10°C and 60°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP65 rated
