3410-3010, Trumeter 3410 Counter, 8 Digit, 40Hz, 10 → 300 V dc, 20 → 300 V ac, Счетчик часов

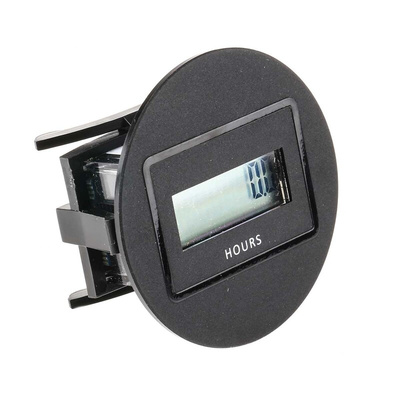

Trumeter Electronic Hour Meter

The Trumeter 3410 series electronic hour meter is an 8-digit, round SAE, panel mount type with remote reset device. It provides a large display, with the 7mm height characters in industry-standard housings. All models are sealed and capable of submersion in 2m of water. The hour meters accept a wide operating voltage ranges between 10VDC to 300VDC or 20VAC to 300VAC. All models are used with the included gasket and have a polarized lens that assures high visibility in an outdoor environment. The maximum count frequency of 40Hz. It is useful for industrial applications.

Features and Benefits

Compact depth
Optional programmable output thresholds (MOSFET)
Optional pre-set count value/ hour meter
Optional is up to 3 redi-alerts/ 7 icons
Fits in existing panel openings
Terminal connection type
A choice of 5 housings
A choice of reset modes
Optional front panel programmable
Optional pre-set functions with output
Can be programmed with starting time
Display range is between 0 and 9999999.9
Operation temperature ranges between -40°C and 85°C

Certifications

UL approved
cUL
CE certified
NEMA4X/
IP66 rated

Datasheet - 3410-3010
