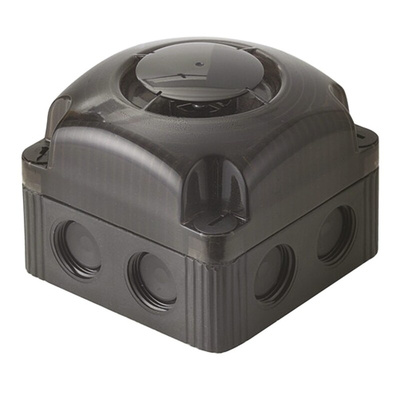

153.000.55, Werma 153 Series Base/Bracket Mount Electronic Sounder, 24 V dc, 105dB at 1 m, IP66, DC, 8-Tone

Werma 8 Tone Sounder, 153 Series

Up to 8 different tones
3 tones can be triggered externally
Sound output 100-105dB
Continuous tone
Externally adjustable sound output (-10 dB)
“Status Light" to emphasise the audible warning signal
Ideal addition to LED Beacon 853
Innovative connector to create traffic light combinations
IP66 protection rating
Polycarbonate housing
Base/Bracket mounting
Diaphragm bushing cable entry, dia. 8 mm max

WERMA 8-Tone Black Electronic Sounder, 105dB, Base/Bracket Mount - 153 Series - 153.000.55

Looking for an audio solution with varying tones to sound the alarm and enhance workplace safety? This WERMA electronic sounder is an acoustic device with eight different tones for the signalling of various alerts. External factors, such as fire outbreaks, can trigger three of the embedded tones. An included innovative connector lets you stack the sounder with light beacons in a traffic-light combination to inform employees of the status quo. You can be sure the loud sound output of up to 105dB will immediately alert people of emergencies in your workplace.

Features & Benefits

• Status light indicates whether the system is sounding an alarm or not
• IP66 (ingress protection) rating guarantees the unit is protected from all dust particles and high-pressure water sprays from all directions
• Base or bracket mounting allows for flexible installations
• PA (polycarbonate) housing is robust and durable for both indoor and outdoor use
• Sound output can be adjusted externally, without the need for disassembly

Applications

• Fire alarms
• Burglar alarms
• Proximity warning systems

How do I install this sounder?

The sounder is suitable for base or bracket mounting. It's easy to assemble thanks to its quick-release screws.
