845.010.00, Werma 845 Series Terminal unit, 24 V ac/dc, 230 V ac, AC, DC, IP54

Stacking Signal Tower - KombiSIGN 50, 50mm, IP54

The WERMA KombiSIGN 50 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. The modular design of these stacking towers enables quick and easy installation. Simply align the corresponding white marks and gently twist to lock them in place.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP54 for use in normal conditions
• Up to 4 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating voltage for the continuous incandescent element is dependant on bulb fitted
• Buzzer element, 80 dB, permanent or pulsating tone adjustable by link in unit
• Operating temperature range is -20 to +50 °C
• Polyamide body with polycarbonate lenses, 50 mm diameter

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 70/71.

Standards

Conforms to LVD: 73/23/EEC and to EMC directive: 89/336/EEC.

Approvals

UL listed, CSA, VDE.

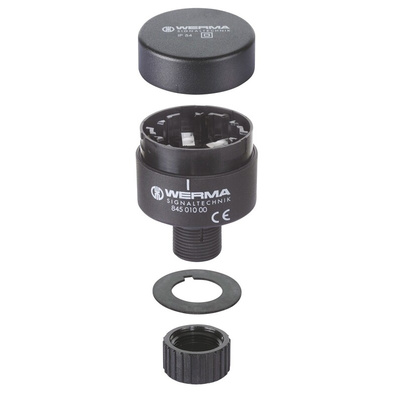

WERMA Terminal Unit, Spring Terminal, 52mm Base Diameter - KombiSIGN 50 Series - 845.010.00

Set up your signal tower in a jiffy with this terminal unit from WERMA. Thanks to the bayonet-type fixing system, you can mount and remove elements from your beacon in seconds with just a twist of your hand. This piece of kit is made of high-strength PA-GF, so it stands up to heat and impact. Thanks to a wide operating temperature range of -20°C to +50°C, it keeps its cool in extreme conditions.

Features & Benefits

• CAGE CLAMP® technology offers a quick and secure connection
• IP54 rating means it's protected against limited amounts of dust and water spray

Applications

• Building and construction
• Machine safety
• Warehouse distribution

What mounting options do I have with this product?

For maximum versatility, this adaptable unit is suitable for base, wall or tube mounting.

Datasheet

Instruction Sheet - 845.010.00

Datasheet - 845.010.00
