280.470.68, Werma BM 280 Series Red Steady Beacon, 230 V ac, Base Mount, LED Bulb, IP65, Маячок

Werma LED Obstruction Light, 280 Series

Obstruction lighting is a means of ensuring flight safety by marking aviation obstacles with electrically operated beacons. High buildings, factory chimneys, towers, masts etc. above a certain height in the vicinity of airports and airfields must be equipped with obstruction lights.

LED obstruction light, certified in accordance with German BMVBW regulations
For use as Low-intensity Obstruction Lights: 678-2931 & 678-2935 are Type A and 849-5368 & 849-5377 are Type B in accordance with ICAO Annex 14
Extremely high light intensity: 15 cd / 32 cd
High impact resistance to 20 Joules
IP65 protection rating

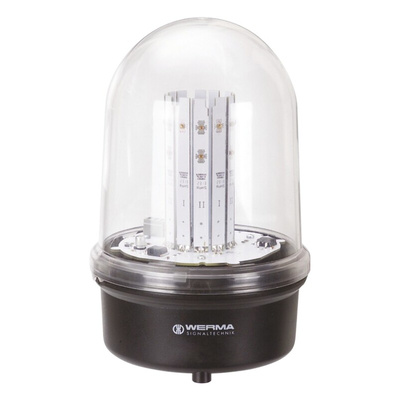

WERMA Beacon, Red LED Colour, Steady Light Effect - BM 280 Series - 280.470.68

Install this WERMA obstruction beacon on tall structures to increase their visibility to nearby air traffic. Its red LED bulb produces a steady, bright light, making it easy to see at night and in poor weather. As its lens and housing are made of polycarbonate, this device is durable and UV-stable to ensure a long service life in demanding conditions. Thanks to its low current consumption of 200mA, this unit is an energy-efficient signalling solution.

Features & Benefits

• Wide operating temperature range between -30°C and +50°C for use in harsh conditions
• Compact dimensions of 218 (height) x 142mm (diameter) to take up minimal space

Applications

• High buildings
• Factory chimneys
• Towers and masts
• Cranes

What's the voltage rating of this beacon?

This unit has a voltage rating of 230V AC for use in low-power systems.

Obstruction Beacons Data Sheet

28047068 LED Obstruction Light BM Data Sheet

Machine Guarding and Safety Range Overview

Datasheet - 280.470.68

Instruction Sheet - 280.470.68
