69821075, Werma LED Beacon Tower, 3 Light Elements, Green, Red, Yellow, 24 V ac/dc, Сигнальная колонна

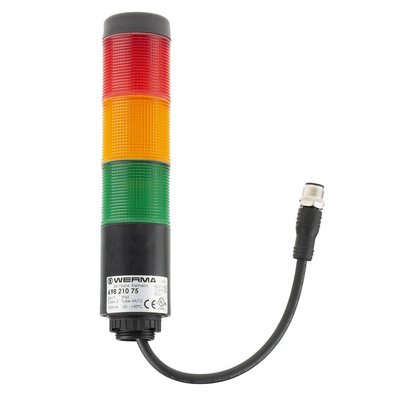

Werma Beacon Tower

The Werma beacon tower is suited to applications on small machines and equipment with limited spaces. It has coloured LEDs, which provides maximum colour intensity making it particularly effective in lower-light environments. In bright sunlight however it can be difficult to see the difference between a coloured lens and an illuminated coloured lens. This is where the clear lens signal tower comes into its own as it is only coloured when in the ’ON’ position, therefore ensuring it is not mistaken as being illuminated when it is in the ’OFF’.

Features and Benefits

Pre-assembled signal tower with maximum of 5 tiers
LED permanent light
Maintenance free LEDs
Number of light elements are 3
Lens Colour is green, yellow and red
LED bulb
Steady light effect
Base and tube mount
Height is 174.5mm
Base diameter is 37.5mm
Connection cable length of 2m

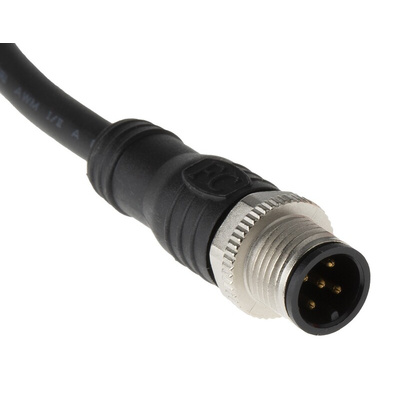

M12 Connector plug
Maximum decibel is 85dB
Supply Voltage of 24VAC/DC
Current Consumption of 200mA
Housing colour is silver
Operating temperature ranges between -20°C and 50°C

Certifications

IP65 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
