HFA-R, Eaton 20A Inline Fuse Holder for 6.3 x 32mm Fuse, 1P, 250V ac, Держатель предохранителя

Cooper Bussmann Fuseholders HFA Series

From Cooper Bussmann, the HFA series of In-line fuse holders designed for housing 6.35 mm x 31.8 mm fuses. In-line fuse holders make it easier to access of change fuses in an electrical circuit as and when required with ease.

Manufactured from rigid materials the body is Phenolic, a composite resin created from phenol and aldehyde making it durable, flame retardant and able to endure high temperatures (Temperature rating (RTI): 150°C). The crimp itself is copper, Tin-Plated ensuring longevity and accepts 16 to 12 AWG copper wire.

Specifications:

IP64 rating for exposed locations, Water-resistant with a voltage rating of 250V and a current rating of 20A.

Features and Benefits:

• High temperature, flame retardant, phenolic meets UL 94 HB
• Crimp terminal
• Water-resistant for exposed locations

How does an inline fuse holder work?

Inline fuse holders are called inline as they are fitted in to a cable rather than in a piece of equipment. As fuses are usually replaceable, most fuse holders have a connection system designed to allow the fuse to be changed quickly with ease. Simply put they are an enclosure or housing that hold the fuse in a wiring circuit allowing it to do it's job of protecting against power overloads, the fuse itself will either cause the wire to heat up and melt or burn itself out to protect the remaining circuit.

Applications:

In-line fuse holders are used in a wide range of electrical and electronic applications. Some of the most common are
• Electrical appliances and devices
• Automotive
• Portable electronics
• LCD Monitors
• DVD players
• Game systems
• Laptops
• Printers
• Battery packs

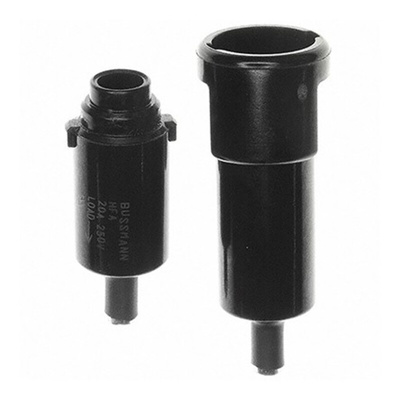

Eaton Inline Fuse Holder, 20A, 250V - HFA-R

This fuse holder from the Eaton range is a reliable mounting point for fuses in electrical circuits. It has two halves that lock together when the fuse is placed between them, offering secure housing and ease of replacement.
The unit is made of a durable phenolic material housing that provides reliable impact and vibration resistance. It has copper crimp-lead materials for high conductivity and seamless signal transfer to the fuse. You can use it in a variety of electronics from laptops and gaming consoles to printers.

Features & Benefits

• High temperature resistance up to +150°C for use in demanding environments
• Current rating of 20A and voltage rating of 250V, so compatible with low-voltage applications
• Tin-plated copper crimp lead for corrosion resistance and durability
• Waterproof body for outdoor use

What safety precautions do I need to take with this component?

First, ensure that the electrical ratings of this fuse holder are the same or similar to the fuse connected to it. Second, it's important to ensure your crimping is done properly to avoid any contact with other external cabling, as this could cause the fuse to break.

Note

Eaton formerly known as Bussmann
