HKP-HH-R, Eaton 15A Panel Mount Fuse Holder for 6.3 x 32mm Fuse, 250V ac, Держатель предохранителя

Eaton Bussmann Panel Mount Fuse Holder - HKP Series

The HKP range of fuse holders from Eaton Bussmann are a panel mount fuse holder for 1/4" x 1-1/4" cartridge or ferrule fuses. They are made for panels up to 5/16” (7.9 mm) thick. A military version of this fuse holder is available. This fuse holder is an RoHS-compliant fuse accessory.

Features and Benefits

• For 1⁄4" x 1 1⁄4" (6.3 mm x 32 mm) fuses
• Panel mount - maximum panel thickness 5⁄16" (7.9 mm) thick
• Bayonet-type knob
• Vibration resistant
• Military version is designated FHN26G1
• Standard plastic nut
• Optional metal nut
• Cap – 9435-1/2
• Neoprene washer – 9732

Approvals

• UL Recognized: IZLT2, E14853
• CSA Component Acceptance: Class 6225-01, File 47235
• CE (HKP, HKP-L, HKP-W, HKP-OO)

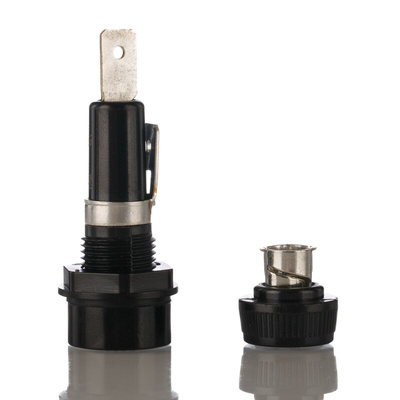

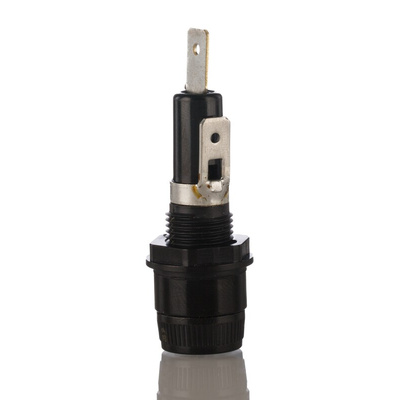

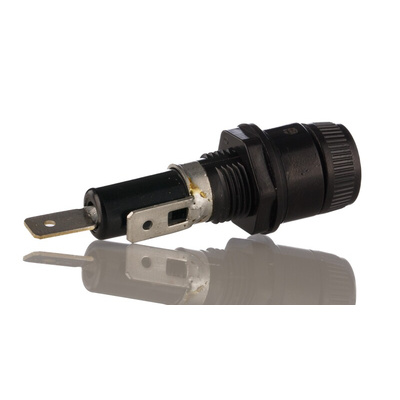

Eaton Panel Mount Fuse Holder, 15A, 250V HKP-HH-R

Mount a fuse securely with this holder from Eaton. It provides a sturdy retaining carrier for a fuse as it's made from a thermoset material that's tough and resistant to corrosion and moisture. The unit is specifically designed for panel mounting and is suitable for use in industrial control circuits and lighting systems. It's insensitive to vibration, which stops it from accidentally releasing in jarring conditions. A quick-connect system allows for rapid assembly, while tin-plated brass terminal points offer maximum electrical conductivity and are unlikely to corrode in humid working environments.

• Flame retardant housing is self-extinguishing and won't contribute to an electrical fire
• Moulded plastic knob is hard-wearing for improved longevity
• Compatible with both cartridge and ferrule fuses of 6.3 x 32mm in size
• Neoprene washer for resistance to weathering and an extended service life

Does this fuse carrier need a separate cover?

No, this fuse holder is closed so it doesn't need an additional cover. As a result, it calls for less installation space.

Do I need to replace this fuse holder when a fuse blows?

No, you don't need to replace this holder if a fuse blows. You will, however, need to replace your fuse.

Note

Eaton formerly known as Bussmann

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.

Datasheet

Transition to Bussmann Series
