TRACOPOWER Switching Power Supply, TPI 150-124A-J, 24V dc, 4.58A, 150W, 1 Output, 120 → 370 V dc, 85 →, Источник питания

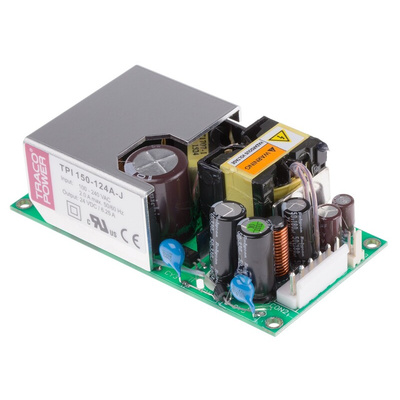

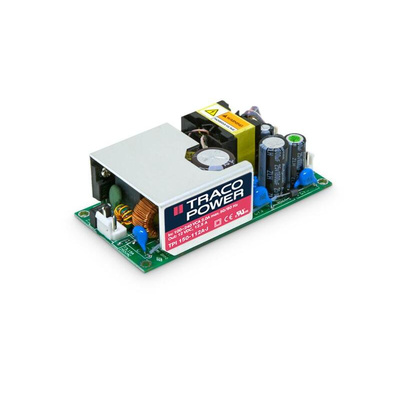

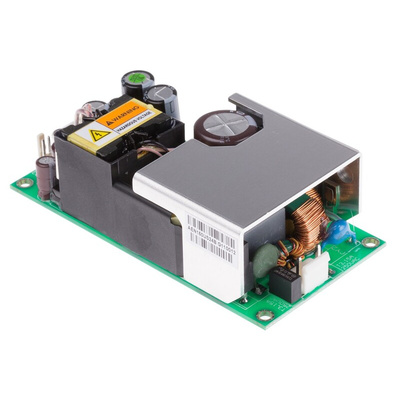

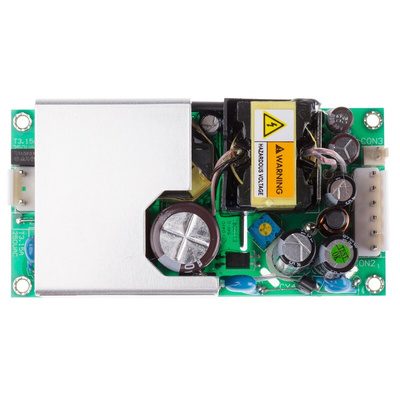

Traco Power Switching Power Supply, 92% Efficiency, Chassis Mounting - TPI 150A Series - TPI 150-124A-J

Get your hands on an efficient voltage conversion solution with this switching power supply from Traco Power. It takes an input of 85 to 264V AC or 120 to 370V DC and outputs a steady 24V DC. With an efficiency rating of up to 92%, it doesn't kick out a lot of heat, so it's an energy-conscious option. Cool running is aided by the open-frame construction. A power rating of 150W and compact dimensions of 50.8 (W) x 32 (D) x 101.6mm (L) mean this is a small device that packs a big punch.

Features & Benefits

• Light 187g weight won't put strain on your devices
• Suitable for use between -40°C and +50°C, ideal for challenging settings
• I/O reinforced isolation of 3,000V DC protects users and equipment from hazards
• Chassis-mounted for speedy installation

Applications

• IT infrastructure
• Consumer white goods
• Industrial automation equipment

Does this unit come with short-circuit protection?

Yes, the unit features continuous short-circuit protection with automatic recovery. This minimises the risk of damage and gets your system up and running quickly after a fault.
