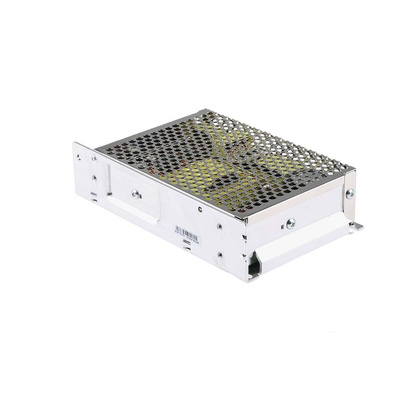

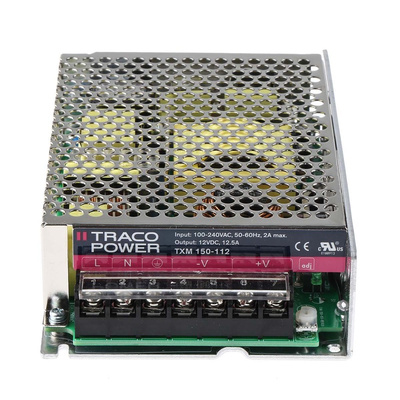

TRACOPOWER Switching Power Supply, TXM 150-112, 12V dc, 12.5A, 150W, 1 Output, 90 → 264V ac Input Voltage, Источник питания

Traco Power Switching Power Supply, 300v AC Surge Voltage, Over-Temperature Protection - TXM 150 Series - TXM 150-112

When reliable output voltages are a top priority, choose this switching power supply from Traco Power. It converts both AC and DC inputs to a stable 12V DC output, so it's ideal for regulating power to sensitive industrial equipment. The sturdy metal housing keeps inner circuits protected from impact and scrapes in heavy-duty applications. As it tips the scales at just 625g, the unit won't put much strain on your system. Compact dimensions of 50 (D) x 179 (L) x 99mm (W) mean it's a doddle to install in tight spots.

Features & Benefits

• Chassis mounting dissipates heat and achieves a firm hold for use in vibrating applications
• 86% efficiency rating means it wastes minimal energy as heat
• Speedy start-up in as little as 2 seconds to minimise downtime
• Continuous short-circuit protection keeps it running without a hitch

Applications

• Transportation industry
• Industrial power supplies
• Mechanical workshops
• Factory equipment

Can I use this switching power supply in harsh conditions?

Yes – this product has an operating temperature range of -10°C to +60°C, so you can use it in challenging settings.
