2901998, Phoenix Contact MINI MCR Series Signal Conditioner, Current Input, Current Output, 9.6 → 30V dc Supply, ATEX,

MINI Analog Pro Signal Conditioners

The Mini Analog Pro signal conditioners from Phoenix Contact are the first 6mm range with plug-in connection technology. Using the latest switching technology, applications are made quicker and easier with the signal conditioners' highly compact and visible housing, easily accessible terminal points and current measurement. Users also benefit from simple configuration via DIP switches as well as extended configuration via software or smartphone app without needing additional accessories plus supports NFC communication

Easy startup and servicing: measures signals without disconnecting current loops and optional disconnect function
Excellent signal quality
Available with extended supply voltages and operating temperatures to suit a wide range of applications
Wiring with screw connection or tool-free plug-in technology

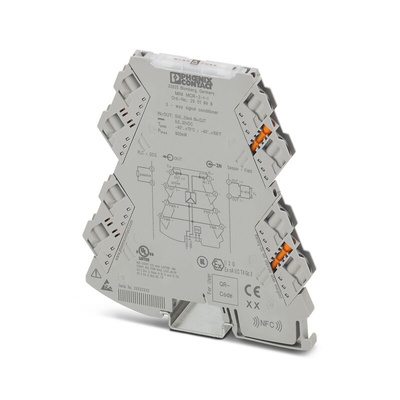

Phoenix Contact MINI MCR Series Signal Conditioner, +70 °C Maximum Operating Temperature, DIN Rail Mounting - 2901998

This signal conditioner from Phoenix Contact is a highly reliable and temperature resistant signal converter designed for industrial signal processing. With a current input range of 0 20 mA and a DIN rail mount module, the mini MCR series ensures precise signal conditioning for a wide range of applications.

Features & Benefits

• Three way signal conditioner with plug in connection technology
• Electrical isolation of analogue signals
• Input signal range of 0 20 mA, output signal range of 0 22 mA
• Suitable for current signals with screw connection technology
• Supports fault monitoring and NFC communication
• Wide operating temperature range from 40°C to +70°C
• Supply voltage range of 9.6 30 V DC for versatile applications

Applications

• Ideal for automation, electronics, electrical, and mechanical industries
• Used for electrical isolation, conversion, amplification, and filtering of standard current signals
• Perfect for applications requiring reliable signal conditioning in harsh environments

Can it be used for current signals other than 0-20 mA?

Yes, it supports current input signals from 4-20 mA as well.

Will it maintain signal integrity in extreme temperatures?

Yes, with a temperature range of -40°C to +70°C, it ensures stable performance in challenging environments.

Is it suitable for industrial use?

Yes, this signal conditioner is designed for industrial applications requiring precise signal processing.

Can it be easily integrated into existing systems?

Yes, with DIN rail mount compatibility and plug-in connection technology, it can be easily installed in various setups.

Will it ensure accurate signal transmission within the specified output range?

Yes, the Phoenix Contact MINI MCR series guarantees precise signal conditioning within the output range of 0-22 mA.

Signal conditioner - MINI MCR-2-I-I - 2901998 Data Sheet

Contains SVHC - Lead - CAS No. 7439-92-1

Instruction Sheet - 2901998

Line Drawing - 2901998
