2902037, Phoenix Contact MINI MCR Series Signal Conditioner, Current, Voltage Input, Current, Voltage Output, 9.6 → 30V

MINI Analog Pro Signal Conditioners

The Mini Analog Pro signal conditioners from Phoenix Contact are the first 6mm range with plug-in connection technology. Using the latest switching technology, applications are made quicker and easier with the signal conditioners' highly compact and visible housing, easily accessible terminal points and current measurement. Users also benefit from simple configuration via DIP switches as well as extended configuration via software or smartphone app without needing additional accessories plus supports NFC communication

Easy startup and servicing: measures signals without disconnecting current loops and optional disconnect function
Excellent signal quality
Available with extended supply voltages and operating temperatures to suit a wide range of applications
Wiring with screw connection or tool-free plug-in technology

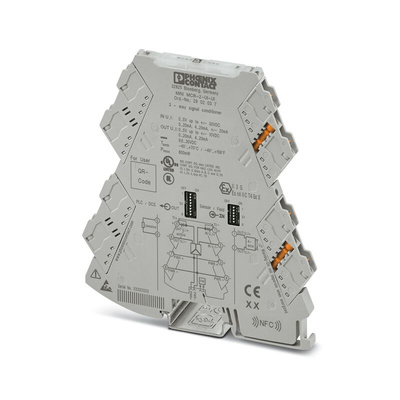

Phoenix Contact MINI MCR Series Signal Conditioner, +70 °C Maximum Operating Temperature, DIN Rail Mounting - 2902037

This Phoenix Contact signal conditioner, with an input range of 0 24mA and an output range of 0 10V, is a vital component for industrial signal conditioning technology. Designed for use in automation, electronics, electrical, and mechanical industries, this device provides precise voltage and current isolation, conversion, and amplification capabilities.

Features & Benefits

• Offers configurable input and output signal types for both current and voltage signals
• DIN Rail Mount design for easy installation and secure mounting
• Operating Temperature Range of 40 to +70°C for reliable performance in extreme conditions
• Supply voltage of 9.6 30V provides flexibility in various power applications
• Mini MCR series ensures high quality signal conditioning for accurate data transmission

Applications

• Ideal for use in Industrial automation systems for signal processing and data transmission
• Suitable for electronic control systems to optimise voltage and current signals
• Used in Electrical equipment to ensure precise voltage and current measurements
• Perfect for mechanical machinery to enhance signal quality and reliability

Can it withstand high operating temperatures?

Yes, the Phoenix Contact signal conditioner is designed to operate within a temperature range of -40 to +70°C.

Will it work with various input signal types?

The signal conditioner supports both current and voltage input signal types for versatile applications.

Is it easy to install on a DIN rail mount?

Yes, the device features a DIN rail mount design for quick and secure installation in industrial settings.

Does it offer output customization for different voltage requirements?

Yes, the signal conditioner provides configurable output ranges, including 0-10V, to meet diverse voltage needs.

Can it ensure accurate signal transmission in noisy environments?

The signal conditioner's industrial signal conditioning technology guarantees reliable data transmission even in noisy industrial environments.
