2902055, Phoenix Contact MINI MCR Series Signal Conditioner, Thermocouple Input, Current, Voltage Output, 9.6 → 30V dc

MINI Analog Pro Signal Conditioners

The Mini Analog Pro signal conditioners from Phoenix Contact are the first 6mm range with plug-in connection technology. Using the latest switching technology, applications are made quicker and easier with the signal conditioners' highly compact and visible housing, easily accessible terminal points and current measurement. Users also benefit from simple configuration via DIP switches as well as extended configuration via software or smartphone app without needing additional accessories plus supports NFC communication

Easy startup and servicing: measures signals without disconnecting current loops and optional disconnect function
Excellent signal quality
Available with extended supply voltages and operating temperatures to suit a wide range of applications

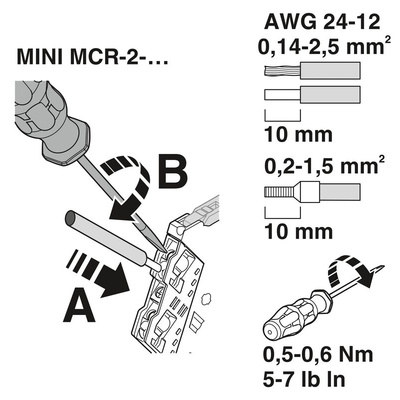

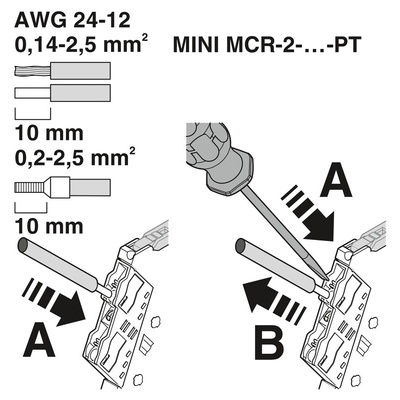

Wiring with screw connection or tool-free plug-in technology

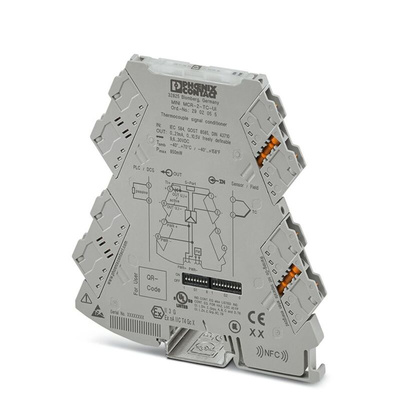

Phoenix Contact Thermocouple Transducer - MINI MCR-2-TC-UI - 2902055

This Phoenix Contact thermocouple transducer measures temperatures by converting input from a sensor (a thermocouple) into current or voltage so that it can be easily interpreted by system instrumentation. The unit's compact housing simplifies access to the terminal points when you need to modify or replace the input sensors.
This product is designed to mount to a globally standardised DIN rail, making it easy to fit and compatible with a wide variety of components. The Mini Analog Pro signal conditioner is the first 6 mm range transducer to feature Phoenix Contact's time-saving, plug-in connection technology.
Configuring the device is simple, using either DIP (dual in-line package) switches or the MINI Analog Pro smartphone app. The measuring transducer supports NFC communication, as well as fault monitoring.

• Temperature to current and temperature to voltage signal conditioner types
• Input range of -250°C to +2500°C
• Output range of 0 to 12.3 V, 0 to 24.6 mA
• Supply voltage of 9.6 to 30 V DC
• Ambient temperature range of -40°C to +70°C
• Dimensions of 110.5 (height) x 6.2 (width) x 120.5 mm (depth)
• Grey housing colour
