PFMV510-1, SMC PFMV Series Suction Pressure Sensor for Dry Air, Gas, 0 L/min Min, 1 L/min Max

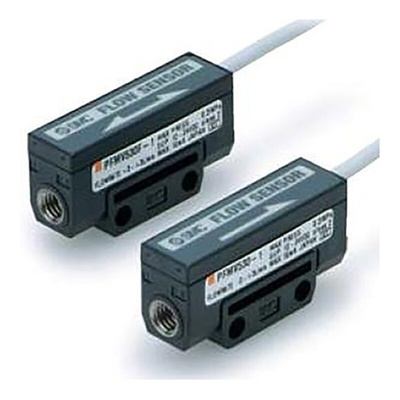

SMC Flow Sensor

The SMC PFMV series flow sensor sense flow rate of 0L/min to 1L/min. It has a rapid response time of fewer than 5 milliseconds. Designed for space-saving, this sensor can be mounted in tight locations as well. This flow sensor that sends an output over a wide range.
Note:
The PFMV3 voltage monitor for the PFMV5 series offers easy connection and removal of wiring, covers a full range of sensors. The dual colour display allows for visual confirmation of the current condition.

Features and Benefits

Pipe diameter range is 4mm
Connection type is one-touch fitting
Maximum operating pressure is 500kPa
Maximum operating temperature is 50°C

Precise suction confirmation of very small work-pieces
Voltage output: from 1V to 5V, analogue, and non-linear
Reduced piping space (M5 female threads port)
Small and light
Low flow rate range
Accuracy ±5% F. S. or less
Repeatability ±2% F. S. or less

Applications

Suction check of very small work pieces
Easier leakage test
Easier check of the work piece presence

Certifications

IP40 rated
CE certified
