EZ9F16103, Schneider Electric Easy 9 EZ9 MCB, 1P, 3A Curve B, 230V AC, 6 kA Breaking Capacity, Автоматический выключатель

Easy EZ9 Series MCB's, RCBO's, RCCB's and Accessories

The Easy9 product range is an affordable circuit protection solution that you can depend on. Schneider Electric work closely with worldwide electricians to make sure they bring you an excellent choice of user-friendly products designed to better support your business needs.

High Quality (100% designed by Schneider Electric)
User Friendly Design
Full Compliance with International IEC Standards 3rd Party Certification
Robust and Reliable Circuit Protection
Range Consists of Insulated Enclosures, Metal Enclosures, Switch-Disconnectors, RCCB's, MCB's, RCBO's and Accessories

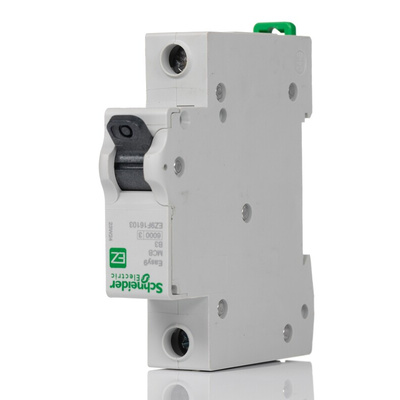

Schneider Electric MCB, 230V AC Rated Voltage, Toggle Switch Reset Actuator - Easy9 Series - EZ9F16103

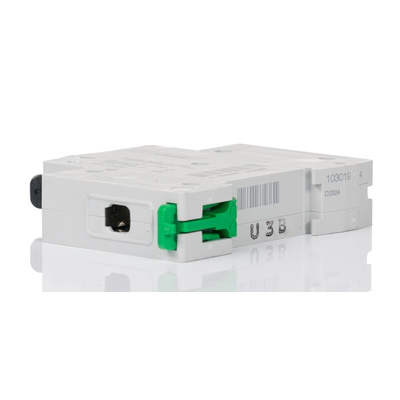

Want to cut the risk of electric shocks out of the equation? Install this single-phase MCB from Schneider Electric to protect domestic equipment from power surges and short circuits. Its type-B tripping characteristics mean it's designed to trip at 5 to 10 times the rated current of 3A, making it a suitable option for use where spikes are likely to be small. It clips easily onto a DIN rail for quick installation in an electrical cabinet.

Features & Benefits

• Voltage rating of 230V AC makes it suitable for use with the UK mains supply
• Thermal-magnetic tripping mechanism trips quickly in the event of a short circuit
• Toggle switch makes it easy to reset

Applications

• Residential buildings
• Retail outlets
• Schools and colleges

How does a thermal-magnetic circuit breaker work?

A thermal-magnetic breaker like this one incorporates a bimetallic strip that expands at different rates when heated. In the event of an overload, the increase in current flowing through the strip heats it and causes it to bend. This gives you both instantaneous and time-delayed protection, allowing for inrush currents such as those needed to start motors, but responding immediately to short circuits.
