HKP-CC, Eaton 30A Panel Mount Fuse Holder for 6.3 x 32mm Fuse, 250V ac, Держатель предохранителя

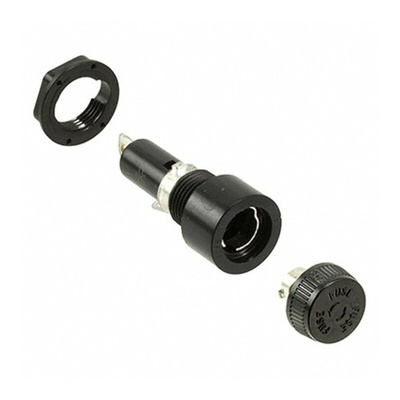

Eaton Bussmann Panel Mount Fuse Holder - HKP Series

The HKP range of fuse holders from Eaton Bussmann are a panel mount fuse holder for 1/4" x 1-1/4" cartridge or ferrule fuses. They are made for panels up to 5/16” (7.9 mm) thick. A military version of this fuse holder is available. This fuse holder is an RoHS-compliant fuse accessory.

Features and Benefits

• For 1⁄4" x 1 1⁄4" (6.3 mm x 32 mm) fuses
• Panel mount - maximum panel thickness 5⁄16" (7.9 mm) thick
• Bayonet-type knob
• Vibration resistant
• Military version is designated FHN26G1
• Standard plastic nut
• Optional metal nut
• Cap – 9435-1/2
• Neoprene washer – 9732

Approvals

• UL Recognized: IZLT2, E14853
• CSA Component Acceptance: Class 6225-01, File 47235
• CE (HKP, HKP-L, HKP-W, HKP-OO)

Note

Eaton formerly known as Bussmann

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.

Datasheet

Transition to Bussmann Series
