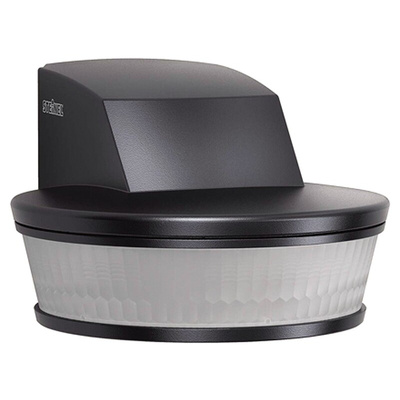

SensIQ S Evo BLK, Steinel PIR Sensor

SensIQ S Infrared Motion Sensor Wall Mounting

The Steinel sensIQ S Infrared motion detector uses intelligent sensor technology and responds to movements and light levels, switching the light on and off automatically after a preselected time. The motion sensor has a coverage angle of 300°, the detection reach of the four pyro sensors can easily be scaled from 2 to 20m (tangentially, temperature-stabilised) in three directions using control dials, instead of shrouds of the type normally used on most other motion detectors. The sensIQ S motion detector comes with remote control and. The infrared motion sensor can be wall mounted; a corner wall mount is available to purchase separately, see accessory link. Ideal applications of the sensIQ S infrared motion detector are for outdoor and indoor use, up to a mounting height of 2.50m, ideal for building entrances, large properties and loading bays.

Infrared motion detector
Passive infrared sensor type
Suited for outdoor and indoor use
Wall mountable (corner wall mount available as accessory for easy corner mounting)
Recommended installation height 2.00-2.50m
300° detection angle
Reach Adjustable in 3 directions by control dial, (2 – 20m max.)
2 to 2000 lx brightness response
Time settings from 10 seconds to 15 minutes
IP54 rated
Protection class II

Motion Detectors

More detailed technical information is available from our web site.
