Teledyne LeCroy Oscilloscope Module CAN FD Triggering & Decode HDO4K-CAN FDBUS TD, For Use With HDO4000 Series, Модуль

Teledyne LeCroy HDO4000 Trigger and Decode Option HDO4K-CAN FDBUS TD

With CAN and CAN FD trigger and decode the oscilloscope becomes the ideal tool for debugging CAN controllers, busses and systems. Users can identify and isolate specific CAN frames with ID, Remote and Error frame triggering. Decoding CAN signals provides tremendous insight into activity on the bus and measurement tools enable fast analysis of bus performance.

Comprehensive CAN and CAN FD trigger and decode
Flexible triggering for CAN and CAN FD data, error and remote frames
Supports CAN signals up to 1 Mb/s and CAN FD signals up to 10 Mb/s
Powerful conditional ID and Data triggering (in range, out of range, less than, greater than)
Convenient table display with 'zoom to byte' capability
Quick search to identify specific message packets

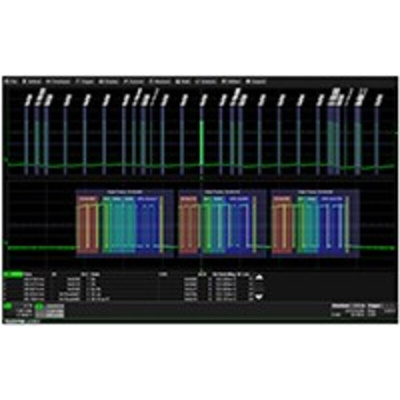

Easily view decoded signals with intuitive colour-coded decode overlay
CAN specific parameters to measure, plot and analyze bus performance
Simultaneously decode up to 4 busses including CAN, CAN FD or other protocols
