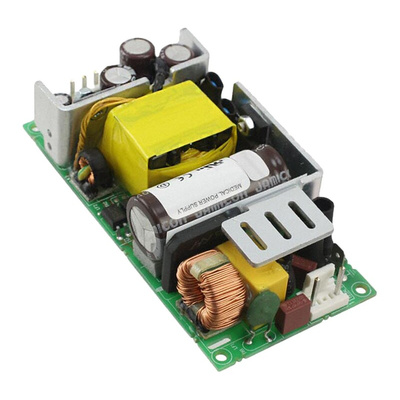

SL POWER CONDOR Switching Power Supply, MINT1065A2475C01, 24V dc, 2.7A, 65W, 1 Output, 100 → 240V ac Input, Источник питания

Switch Mode, Single Output, Medical Power Supply, MINT1065 Series

The SL Power Electronics MINT1065 family is a series of single output, medical open-frame AC/DC power supplies. These switch mode power supplies come in a size of 2 x 4 x 1.2 inches, the MINT1065 provides 65W continuous output power, with up to 90% efficiency. The MINT1065 power supplies operate at universal input range of 90 to 264Vac. The power supplies are fully protected against short circuit, overload and overvoltage. The MINT1065 series of switching power supplies are ideal for medical applications.

65W Convection Cooled AC-DC Power Supply
Universal Input 90-264Vac
Less than 0.5W No Load Power Dissipation
Rugged EMC Compliant Design
Small package
Meets Efficiency Level IV Efficiency

Standards

EN/IEC/UL60601-1, 2nd Edition
EN/IEC/UL60950-1, 2nd Edition

Approvals

UL, EN, IEC

Switch Mode - SL Power

Datasheet
