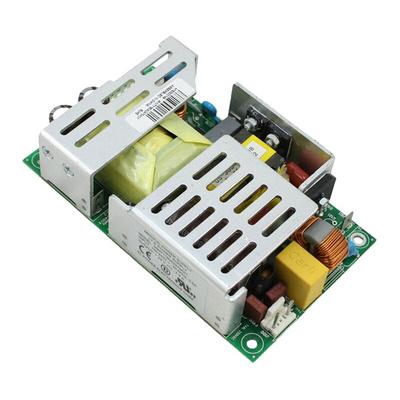

SL POWER CONDOR Switching Power Supply, MINT1180A2475K01, 24V dc, 7.5A, 180W, 1 Output, 100 → 240 V ac, 120, Источник питания

Switch Mode, Single Output, Medical Power Supply, MINT1180A Series

The SL Power Electronics MINT1180 family is a series of single output, medical open-frame AC/DC power supplies. These switch mode power supplies come in a size of 3 x 5 x 1.3 inches, the MINT1180 provides 180W convection cooled, with up to 88% efficiency. The MINT1180 power supplies operate at universal input range of 90 to 264Vac. The power supplies are fully protected against short circuit, overload and overvoltage. The MINT1180 series of switching power supplies are ideal for home care applications where the use of fans is not desired.

Small package
180W Convection Cooled Power
Ideal for 1U Applications
Universal Input 90-264Vac
Efficiency 90% typical
RoHS Compliant

Standards

CSA/EN/IEC/UL60601-1, 3rd Edition, 2 x MOPP Isolation
CSA/EN/IEC/UL60950-1 2nd Edition

Approvals

CSA/EN/IEC/UL

Switch Mode - SL Power

Datasheet
