AE95-08, Moflash AE95 Series Panel Mount Buzzer, 110 → 230 V ac/dc, 111dB at 1 m, IP65, AC, DC, Single-Tone, Зуммер

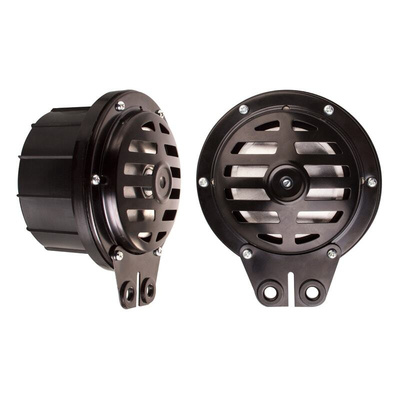

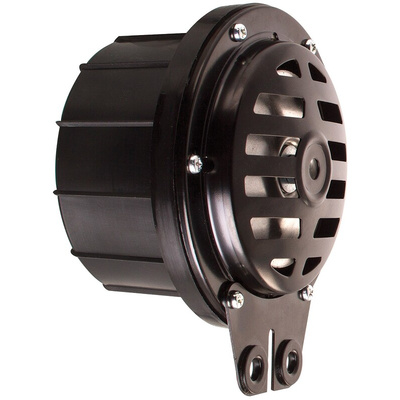

Moflash AE95 Buzzer

The AE95 electrical/mechanical buzzers from Moflash are suitable for a wide range of industrial signalling applications where a low frequency and penetrating audible signal is required. Typical applications would be for industrial (stop/start & time signalling, etc) and automotive applications (reversing alarm/forklift truck, etc). The units offer a single stage alarm, once energised an electromagnet causes the diaphragm to vibrate creating a unique acoustic tone. The AE95 buzzer can also be pulsed via a remote source (control panel/plc, etc) to give an intermittent signal if required.

Rugged construction
Wide voltage range
Rated at 15 mins On max / 1 min Off min
Suitable for 2 point automotive fixing and weatherproof when fitted with AE95-BB back box
Dustproof
Powder coated mild steel
111 db output
IP65 with back box (IP53 without)
RoHS compliant
CE marked

Note

The AE95 buzzer comes complete with a weatherproof back box that allows for termination inside the enclosure. A weatherproof cable gland is supplied as standard.

Moflash Black Single-Tone Buzzer, 110 to 230V AC/DC, 111dB - AE95 Series - AE95-08

This Moflash single-tone buzzer is an audible alarm to enhance safety in your indoor workplace. The unit mounts to a wall or flat surface and supports a wide range of supply voltages from 110 to 230V AC/DC (alternating current/direct current), making it compatible with most set-ups. When triggered, the internal electromagnet vibrates the buzzer's diaphragm mechanism to emit a low-frequency buzzing noise. The component has a maximum sound output of 111dB (decibels), making it easy to hear in loud environments. A buzzer like this one is frequently used on the doors of large factory equipment to alert personnel to potential danger.

Features & Benefits

• IP65 (ingress protection) rating for protection against dust and low-pressure water jets
• Robust powder-coated mild steel housing material is impact and corrosion-resistant for use in harsh environments
• Compact diameter of 96mm fits into tight or awkward spaces easily

Applications

• Power plants
• Factories
• Office spaces
• Laboratories

Can this buzzer be used in extreme temperatures?

Yes, this buzzer can operate in temperatures as low as -30°C and as high as +60°C.
