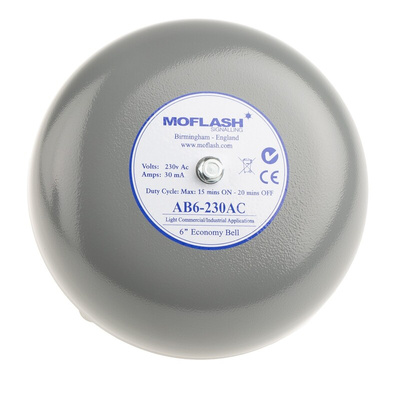

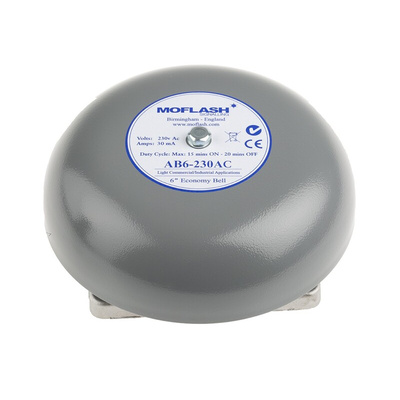

AB6-230AC, Moflash AB6 Series Wall Mount Siren, 230 V, 100dB at 1 m, IP44, AC, Single-Tone

Moflash Single-Tone Economy Bell, 230V AC - AB6 Series - AB6-230AC

This powerful single-tone siren from Moflash is designed for use as a fire alarm in both domestic and industrial applications. It features a die-cast aluminium body that has excellent impact and corrosion resistance for a longer lifespan. The siren produces sound using a solenoid-powered striker that repeatedly hits the inside edge of the metal gong, producing a loud and clear ringing tone. This type of siren is commonly used in environments where recurrent audible signalling is required in localised areas.

Features and Benefits

• Compact diameter of 167mm to save space
• Wide operating temperature range of -20°C to +45°C for use in demanding environments
• Intensity of 103 decibels (dB) for a highly audible alarm sound
• IP44 (ingress protection) rating for resistance to tools and small wires greater than 1 mm as well as water spray from any direction

Applications

• Schools and colleges
• Fire stations

How do I mount this siren?

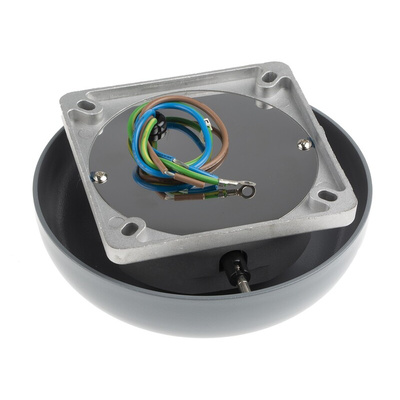

For versatility, the siren has two mounting options. You can either use the four mounting holes that are incorporated into the body of the casting, or use the universal mounting plate and gasket to fix it onto a variety of flat surfaces.
