AE95-07, Moflash Black Panel Mount Buzzer, 96 mm Diameter, 24 → 48 V ac/dc, Зуммер

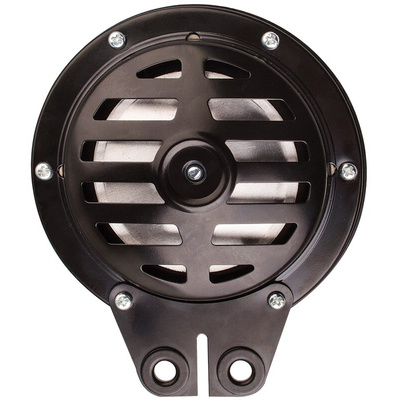

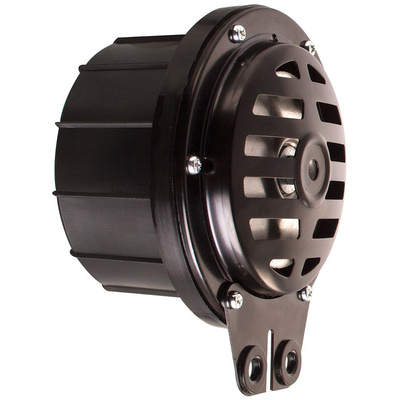

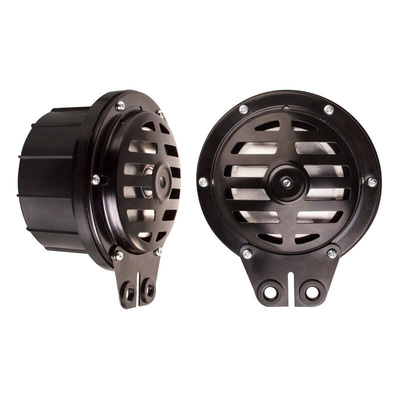

Moflash AE95 Buzzer

The AE95 electrical/mechanical buzzers from Moflash are suitable for a wide range of industrial signalling applications where a low frequency and penetrating audible signal is required. Typical applications would be for industrial (stop/start & time signalling, etc) and automotive applications (reversing alarm/forklift truck, etc). The units offer a single stage alarm, once energised an electromagnet causes the diaphragm to vibrate creating a unique acoustic tone. The AE95 buzzer can also be pulsed via a remote source (control panel/plc, etc) to give an intermittent signal if required.

Rugged construction
Wide voltage range
Rated at 15 mins On max / 1 min Off min
Suitable for 2 point automotive fixing and weatherproof when fitted with AE95-BB back box
Dustproof
Powder coated mild steel
111 db output
IP65 with back box (IP53 without)
RoHS compliant
CE marked

Note

The AE95 buzzer comes complete with a weatherproof back box that allows for termination inside the enclosure. A weatherproof cable gland is supplied as standard.

Buzzer
