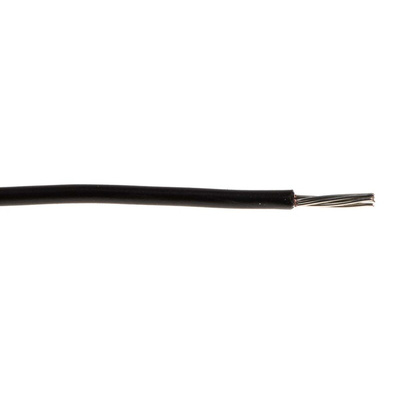

RS PRO Black 0.34 mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 250m, PVC Insulation, Провод

RS PRO Harsh Environment Wire 0.34 mm² CSA, Black 250 m Reel

Need a sturdy cable for wiring electronic equipment? This harsh environment wire from the RS PRO range is perfect in areas of high pressure, temperature or underwater. You'll find it can operate down to -49˚C without cracking and up to +105˚C without melting.

The wire is constructed of a single core that consists of seven strands. Each strand has a cross-sectional area of 0.34 mm² (AWG 22). Manufactured from tin-plated copper, the wire is built to resist corrosion and provide good contact. Conductor resistance is a maximum of 59.4 Ω/km, at 20ºC. Sheathed in black PVC, it'll prove durable across its 250-metre length.

This wire conforms to French safety standards NFC 93521 and NFC 32070/C1 (fire retardance), and also meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 so you can be sure it won't damage equipment through electrostatic discharge. Plus, it's also RoHS compliant on hazardous substances.

Features and Benefits

• Harsh environment wire
• Suitable for wiring in electronic equipment in areas of high pressure, high temperature or underwater
• Single core
• Copper conductor
• Outer diameter of 1.45 mm
• Sheathed in black PVC
• AWG 22
• Voltage rating of 250 V
• Length of 250 m
• Seven conductor strands with a cross-sectional area of 0.34 mm² (0.25 mm each)
• Maximum conductor resistance 59.4 Ω/km, at 20ºC
• Minimum operating temperature of -49°C without cracking
• Maximum operating temperature of +105°C without melting
• Conforms to standards NFC 93521, NFC 32070/C1 (fire retardance), ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (electrostatic discharge) and RoHS (hazardous substances)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
