2903171, Phoenix Contact PLC-OSC-LPE-24DC/48DC/100 Series Solid State Interface Relay, DIN Rail Mount

PLC-OSC Interface Relay

PLC-OSC series sensor interfaces, consisting of PLC-BSC basic terminal block with screw connection and plug-in miniature solid-state relays and PLC-OSC series solid state relays.

Screw connection
Yellow LED indicator
Operating temperature: -25 ºC to 60 ºC
Wide range of accessories also available

Standards

IEC 60664, EN 50178, IEC 62103

Approvals

CUL, GL, UL

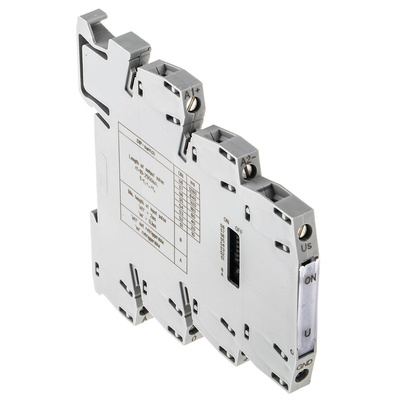

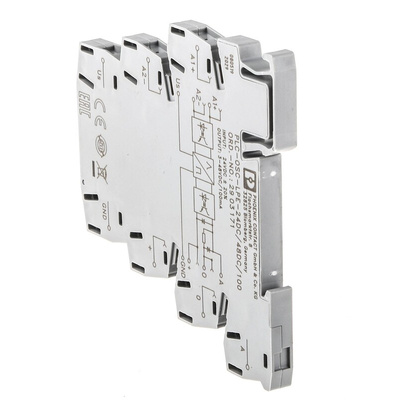

Phoenix Contact PLC-OSC-LPE-24DC/48DC/100 2903171

The Phoenix PLC-OSC timer module features a single-channel pulse expansion module, with screw connection.

Features and Benefits

• The PLC Interface timer module is compact in size with dimensions: Width - 6.2 mm x Height 80 mm x Depth 86 mm


• Operating temperature range of -25 ºC to 60 ºC


• The module has an input voltage of 24 V DC and voltage outputs of up to 48 V DC, and supply 24 V DC


• Multiple DIP switch settings available

How does a Timer Relay Module work?

Relay interfaces are a sophisticated and convenient way to operate a relay. They predominantly contain switches that enable the contacts that they are housed into become either closed or open, on or off. They are a great way to organise and operate a relay, helping them improve a relay's performance. When using a timer relay module the contacts can open or close following some time delay.

PLC-OSC-LPE-24DC/48DC/100 Datasheet
