3213125, Phoenix Contact FBS Series Jumper Bar for Use with Terminal Block

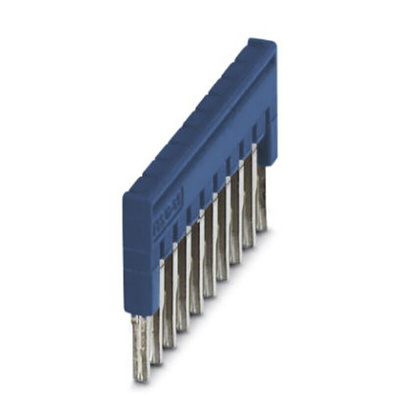

Phoenix Contact Jumper Bar For Terminal Block, 3.5mm Pitch, 10 Positions - FBS 10-3,5 BU - 3213125

Set up multiple electrical connections in your terminal block using this jumper bar from Phoenix Contact. It transmits current from a single cable to several devices on the block, eliminating the need for separate wires. Benefitting from plug-in mounting, you can simply clip it onto the terminal plug for a hassle-free installation. As a 10-position unit, you'll find this to be a versatile choice.
The component fits easily into crowded panels due to its slim pitch of 3.5mm. A broad operating temperature range between -60°C and +105°C means it can withstand harsh environments. Copper construction means it's highly conductive and has thermal resistance for reliable current transmissions. You can safely use this jumper bar in powerful industrial systems thanks to its maximum load current rating of 17.5A.

• Blue housing for easy colour-coding in crowded setups
• Light weight of 3.41g for reduced strain on terminal block
• Can be cut for flexible assembly
• Flammability rating of UL94 V0 indicates burning will stop within 10 seconds
• Polyamide insulation for electrical safety

Datasheet

Line Drawing - 3213125
