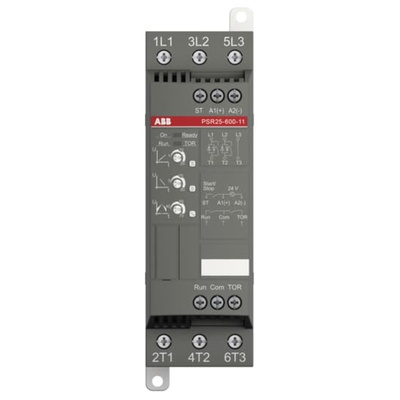

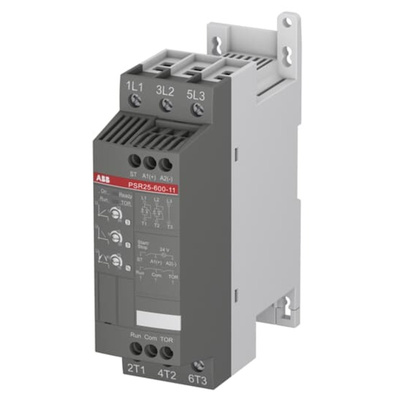

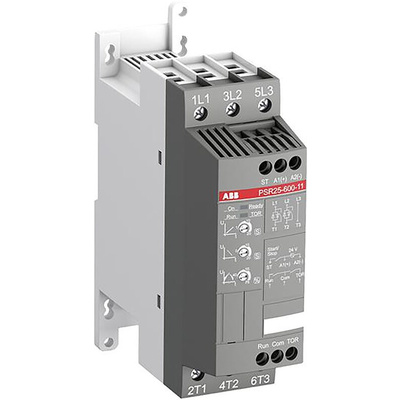

1SFA896108R1100, ABB Soft Starter, Soft Start, 11 kW, 208 → 600 V ac, 3 Phase, IP20, Устройство плавного пуска

ABB Soft Starter, 600V AC Voltage Rating, 11kW Power Rating - PSR Series - 1SFA896108R1100

Use this soft starter from ABB to reduce the initial voltage of your industrial motors. The device supports a gradual increase in voltage when the motor starts, allowing it to slowly and safely accelerate to prevent mechanical wear from sudden voltage surges. A power rating of 11kW makes the unit suitable for use in heavy-duty applications. Thanks to compact dimensions of 160 (height) x 128 (width) x 45mm (depth), this is a space-efficient motor control solution for small enclosures.

Features & Benefits

• DIN rail mounting is easy and tool-free, saving time and effort
• Light weight of 600g, so it's easy to install and won't strain the DIN rail
• Fieldbus plug compatible for easy communication and diagnosis
• Wide operating temperature range of -25°C to +60°C for use in demanding conditions

Applications

• Industrial grinding machines
• Lathe machines
• Gas plants

Is this soft starter finger-safe?

Yes, this soft starter has an IP20 (ingress protection) rating, indicating that it can withstand objects larger than 12mm in size. Its terminals are located away from the reach of your fingers to protect you from electric shocks.

ABB Softstarter - Data Sheet
