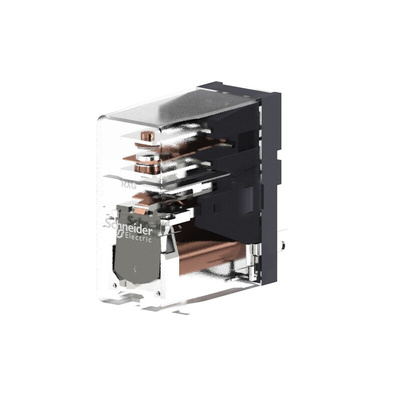

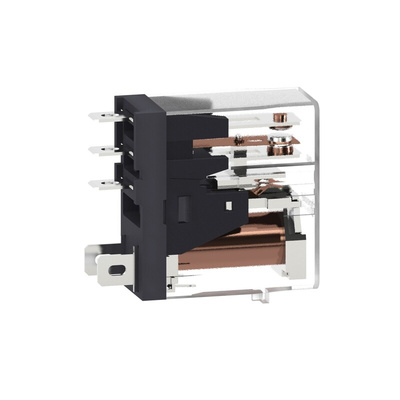

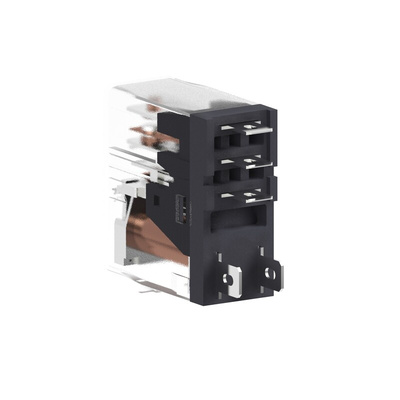

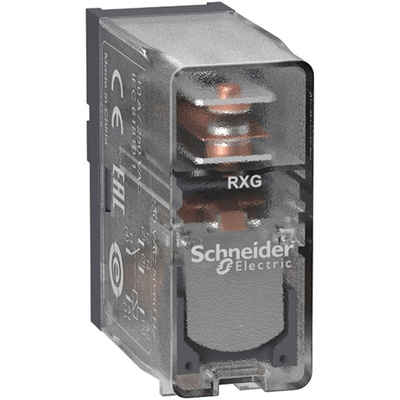

RXG15BD, Schneider Electric Plug In Power Relay, 24V dc Coil, 10A Switching Current, SPDT, Реле

Zelio RXG Interface Relays

The Zelio RXG interface relay is widely used in PLC interface application for its reliable installation, easy
Test & maintenance, slim and spacing saving features.

The RXG interface relay range consists of-
10 A relays with 1CO contact and 5 A relays with 2CO contacts.
Sockets with separate contact terminals with screw connector connection, 35mm DIN Rail mounting and panel mounting.
Protection modules (diode, diode + LED, RC circuit or varistor+ LED) common to all RXG and RSB sockets.
A plastic maintaining clamp is supplied together for all RXG sockets.
Clip-in legends for all RXG and RSB sockets.

Schneider Electric Power Relay, 100mΩ Contact Resistance, 0.53W Power Consumption - Harmony Relay RXG Series - RXG15BD

Need a steady hand to switch high loads in your industrial equipment? Turn to this power relay from Schneider Electric. It uses electromagnetism to close its contacts when a current is passed through its coil, allowing you to turn your device on or off. The unit is designed with workplace safety in mind – its dielectric strength of 5kV AC tells you that it's insulated to keep electrical hazards at bay. As it consumes just 0.53W of power during operation, this is an energy-saving control solution.

Features & Benefits

• 10A current rating means it's the right choice for medium-duty applications
• Can be assembled in any position to suit your design needs
• IP40 rating shows that it's finger-safe as it's protected from objects larger than 1mm
• Withstands up to 10 million mechanical operating cycles, assuring you of long-lasting performance

Applications

• Transportation industry
• Marine engineering
• Oil and gas plants

What size is this power relay?

This device has compact dimensions of 13 (L) x 29 (W) x 28mm (H), making it a space-saving choice for busy setups.
