HTB-38M-R, Eaton 16A Panel Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac, Держатель предохранителя

Cooper Bussmann Fuse Holder - HTB Series

Professional range of Cooper Bussmann panel mounted fuse holders from the HTB series.

Panel Monut

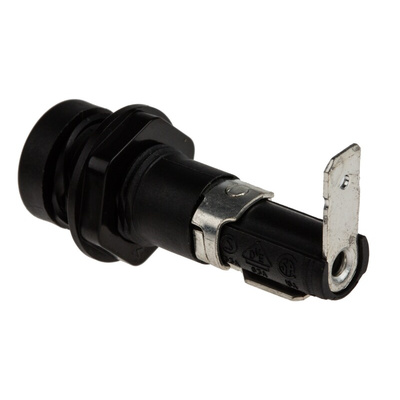

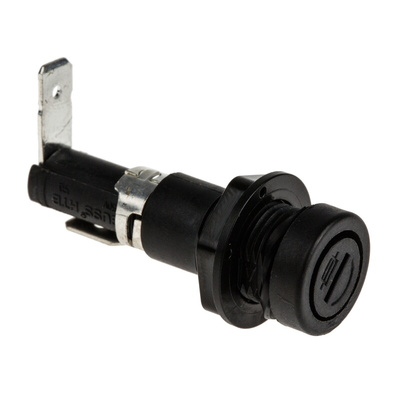

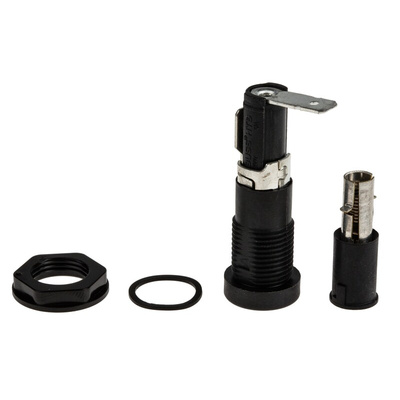

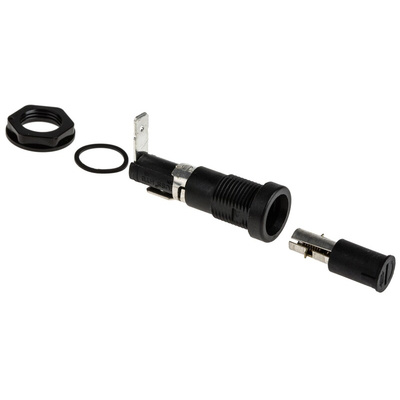

Eaton Panel Mount Fuse Holder, 16A Current Rating, Single-Pole Configuration HTB-38M-R

Use this fuse holder from Eaton for the safe mounting of electrical fuses. The unit links directly to the equipment you want to protect and is designed to accommodate standard 5mm x 20mm fuses. It ensures that there's a strong current path for the fuse and that voltage doesn't leak to other nearby components. You can install the holder quickly and easily with a screwdriver. Thanks to a 16A current rating, you can use this unit with high-current-consuming devices such as automatic voltage regulators and UPS units.

• Wide operating temperature range of -55°C to +85°C for use in demanding conditions
• Light weight of 8.5g means it won't put strain on your equipment and is easy to handle during installation
• 250V AC voltage rating for use with low-voltage applications

What's the difference between a fuse holder and a fuse block?

A fuse holder is designed to hold a single fuse, while a fuse block is a larger device that can handle up to 12 fuses at the same time.

Note

Eaton formerly known as Bussmann

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.

Datasheet

Transition to Bussmann Series
