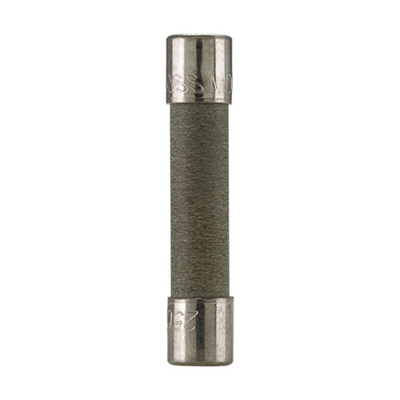

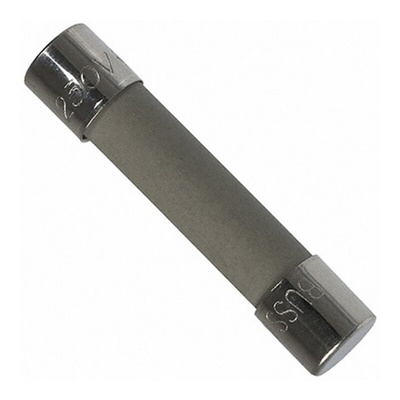

BK-MDA-4-R, Eaton 4A T Ceramic Cartridge Fuse, 6.3 x 32mm, Предохранитель

Eaton Cartridge Fuse, 250V AC Voltage Rating, 10kA Maximum Breaking Capacity - MDA Series - BK-MDA-4-R

Stop power faults in their tracks with this cartridge fuse from Eaton. By blowing safely for overcurrent up to 10kA, it cuts issues off before they affect downstream machinery. Thanks to its nickel-plated brass endcaps, it supports energy flow without a snag to keep your process running smoothly. The robust insulating ceramic tube handles heat effectively and cuts the risk of arcing. As a time-delay type, this fuse copes with loads up to 135% of its 4A rating for an hour before blowing, which minimises disruption by cutting nuisance trips. This kind of cartridge fuse is particularly well suited to use with DC-DC converters.

Features & Benefits

• Works with AC voltages between 125 and 250V for versatile installation
• Measures 6.3 (diameter) x 32mm (length), so easily tucks into standard setups
• Mounts into a fuse holder, so installation and replacement are easy

What's the typical voltage drop of this product?

This fuse typically causes a voltage drop of just 0.162V at rated current, keeping its impact on your system's power flow to a minimum.

Note

Eaton formerly known as Bussmann

Datasheet

Transition to Bussmann Series
