HKP-R, Eaton 30A Panel Mount Fuse Holder for 6.3 x 32mm Fuse, 1P, 250V ac, Держатель предохранителя

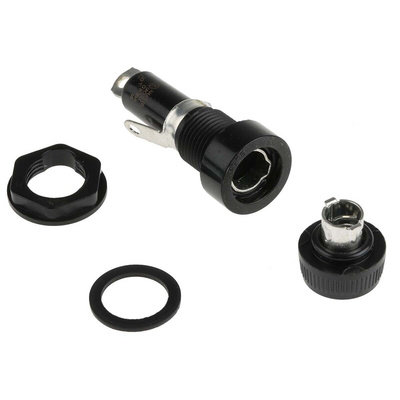

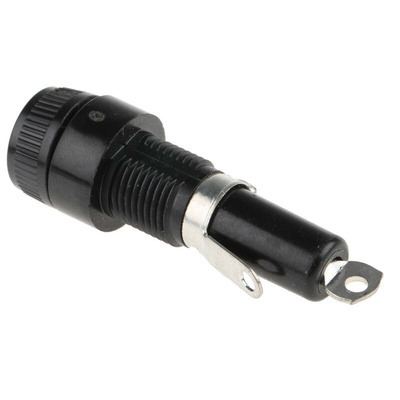

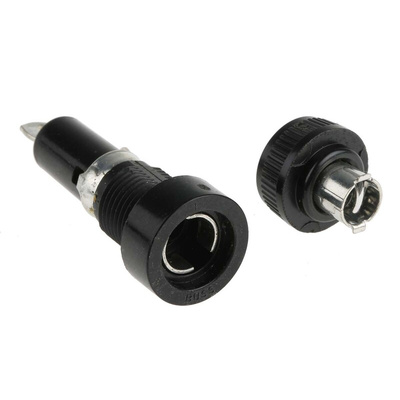

Eaton Panel Mount Fuse Holder, Bayonet Knob, For 6.3 (W) x 32mm (H) Fuse Size - HKP-R

Put your fuse firmly in its place with this panel-mount holder from Eaton. It's fully enclosed to withstand the knocks and bumps of a busy industrial or commercial environment. Inserting and replacing the fuse is a breeze, thanks to the unit's bayonet knob. Simply push and turn it anti-clockwise to open the holder, then place the fuse into the carrier section. When you've finished, replace the holder and secure it again with the bayonet – easy as pie.

Features & Benefits

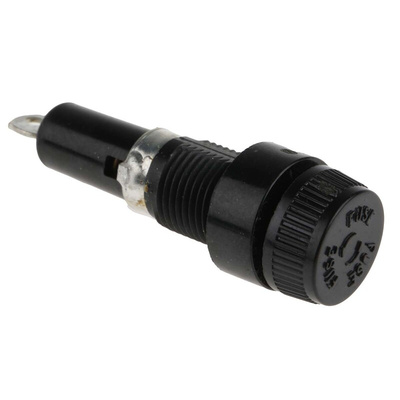

• "Fuse" is clearly printed on the cap for easy identification
• Tin-plated terminals for a reliable connection
• Durable black thermoplastic is suitable for use in temperatures up to +150°C
• Compact dimensions of 59.1 x 19.9mm won't add unnecessary bulk to your setup

How do I mount the fuse holder on my panel?

You'll need to make a mounting hole of 12.8mm ± 0.13mm x 12.0mm ± 0.13mm, with one side flattened for protection against rotation. Then push the fuse holder into the hole and secure it with the hexagonal locking nut.

Does it matter how thick the panel is?

You can mount the device on panels up to 7.9 mm thick.

Note

Eaton formerly known as Bussmann

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
