170M1370, Eaton 200A Bolted Tag Fuse, NH000, 690V, 78mm

Cooper Bussmann 170M Series

The 170M series from Cooper Bussmann offers a professional range of bolt down fuses in a mounting style as well as a termination style.

Mounting Style - Stud
Termination Style - Bolt Down

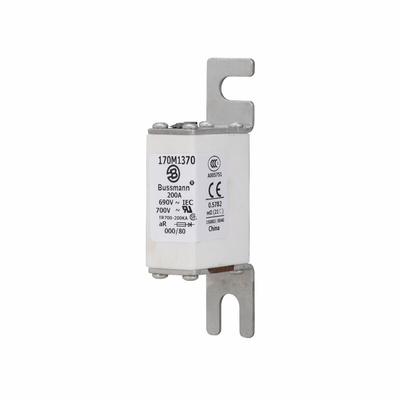

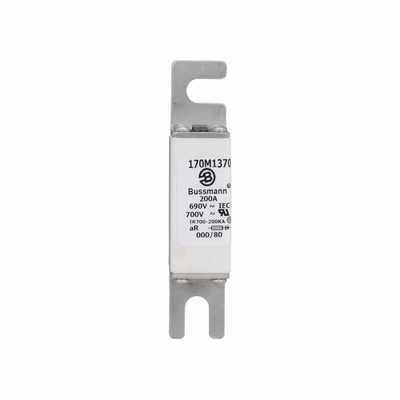

Eaton Bolted Tag Fuse, 000, 200A - 170M Series - 170M1370

Need a compact and high-speed fuse for your DC drive or power converter? Use this Eaton square-shaped, bolted tag fuse. It's 54mm long, 21mm wide and 40mm high, so it takes up minimal space in your setup and reduces wattage loss.
As it's an F speed fuse, this is a fast-acting option with a thin element that blows quickly to protect components from short circuits. Use it as a reliable safety solution for installation on busbars and switchgear.

Features & Benefits

• Class aR fuse to prevent damage to semiconductors in devices and circuitry
• Lead-free components for increased workplace safety and sustainability
• High 200A current rating for use on industrial and commercial distribution boards

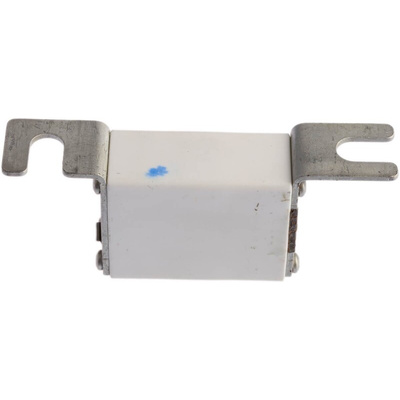

What's an offset bolted tag fuse?

An offset bolted tag fuse has metal fixings that are off-centre from the body of the fuse. This type of tag is handy for fitting fuses into awkward spaces on industrial circuits. Stud mounting via these tags means this fuse is securely fixed in place and resistant to vibrations. It can be used in a range of industrial applications, including electrical equipment and wiring systems.

Note

Eaton formerly known as Bussmann
