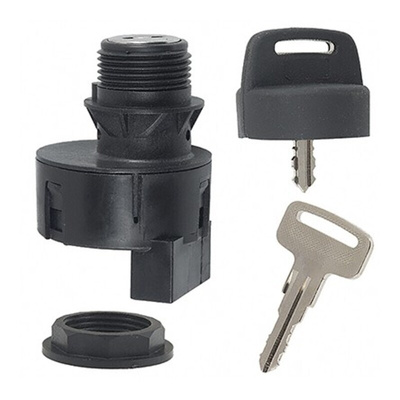

84826-01, Honeywell Key Switch, 20 A @ 12 V dc 3-Way Straight-Key, Выключатель с ключом

Sealed Ignition Keyswitch (12Vdc to 48Vdc)

Attractive, rugged IP66 sealed ignition keyswitch
Ratings 20A@12Vdc, 10A@24Vdc, 4A@48Vdc
Ideal for starting ignition sequence, activating power accessories, or switching between user interfaces
Switch has 3 positions (OFF-ON-Momentary START)
Typical applications of this keyswitch, originally from the Hobbs stable, include construction equipment, marine equipment, all-terrain vehicles, golf carts, material handlers, agricultural equipment etc
Connection via screw terminations
Key removable in off position (2 keys supplied)
Supplied with M22 x 1.5mm panel retaining nut

Honeywell Momentary Key Switch, 20A at 12V DC, 45° Key Index Angle - 84826-01

Use this key switch from Honeywell to switch on the motor in your commercial and industrial vehicles or machinery. The unit consists of a key and a contact ignition enclosed in a protective housing. The components join together using a threaded connection to keep them fastened securely in place. The key turns to a 45° angle to activate the ignition, making it easy to operate.

Features & Benefits

• Long mechanical lifespan of up to 25,000 cycles for long-lasting use
• Wide operating temperature range of -40°C to +85°C for use in demanding environments
• Strong nylon and polypropylene (PP) case materials for resistance to impact and wear
• Brass contacts ensure high-quality conduction with resistance to heat buildups for a reliable connection

Applications

• Off-road vehicles
• Construction controls
• Agricultural machinery
• Lawn and garden equipment

Is this key switch protected against contaminants?

Yes, this key switch has an O-ring seal to prevent external contaminants from entering the switch and interfering with its function.

How many positions does this key switch have?

This key switch has three positions, including simple off and on positions and an extra momentary start position for rapid response switching.
