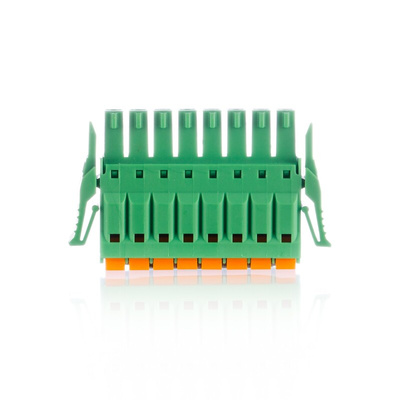

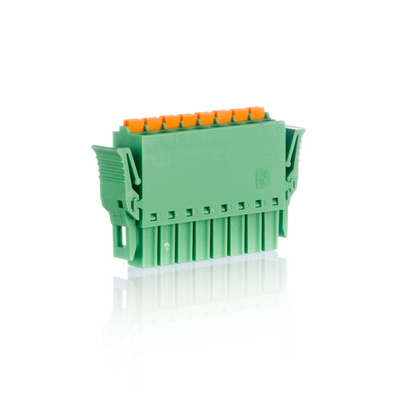

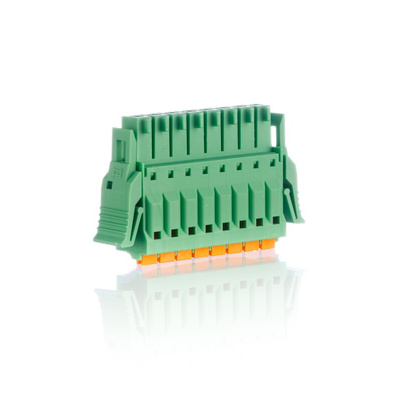

1952089, Phoenix Contact 3.5mm Pitch 8 Way Pluggable Terminal Block, Plug, Cable Mount, Spring Cage Termination

Phoenix Contact MINI COMBICON FMC 1,5 Series 3.5 mm Terminal Block Plugs with Latch Lock

COMBICON FMC 1,5 Series 3.5 mm pitch terminal block plugs which form part of a two-part pluggable terminal block system when used with PCB terminal block headers. The positioning of the conductor connection and operating interface of these plugs makes them ideal for integrating into the front of a device. A direct push in connection mechanism enables conductors to be inserted without the need for any special tooling. Actuation levers enable simple release of the connection. These terminal block plugs also feature a latch lock mechanism which provides a secure connection to the mating header

Features and Benefits

• Designed for integration into the front of a device
• Time saving and tool free direct push in connection
• Actuation levers for simple disconnection
• Defined contact force for long-term contact stability
• Latch lock mechanism for secure connection to PCB header

Phoenix Contact Cable-Mount Pluggable Terminal Block, 8 Contacts, 1 Row - MC 1.5/ 8-ST-3.5-RF - 1952089

Connect multiple wires to a PCB (printed circuit board) using this single-row, 8-contact terminal block from Phoenix Contact. Simply push in each cable to attach it to a terminal. You can insert both solid and stranded wires, making this a versatile choice that's suitable for a range of applications. The spring cage termination keeps wires secured, so you can rely on a stable connection.
Designed for supply voltages up to 320V, this terminal block is suitable for use in high-power systems. Its rated surge voltage of 2.5kV means it's protected from overcurrent. This device is light (4.78g), so you can move it around and store it easily. Its tin-plated contacts have excellent corrosion resistance.
Mount this terminal block on a PCB header to transmit power and data. The flat body lets you position it on the front of the equipment, where it remains securely connected thanks to its latch lock component.

Features & Benefits

• UL (Underwriters Laboratories) 94 V-0 flammability rating means flame stops burning within 10 seconds in the event of a fire
• Actuation levers for easy cable disconnection
• PA (polyamide) material provides insulation to prevent overheating

Phoenix Contact MINI COMBICON 3.5mm Two Part Terminal Blocks
