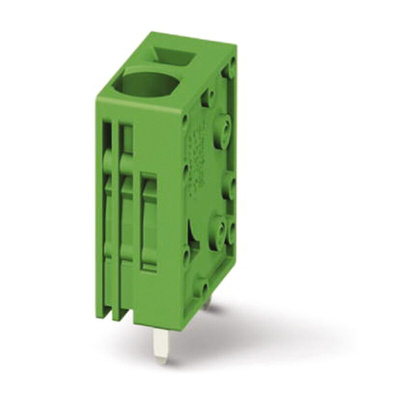

1719309, Phoenix Contact SPT 5/ 1-V-7.5 Series PCB Terminal Block, 1-Contact, 7.5mm Pitch, Through Hole Mount, 1-Row, Push In

Phoenix Contact COMBICON SPT 5 Series 7.5 mm Pitch PCB Terminal Blocks

COMBICON SPT 5 Series 7.5 mm pitch PCB terminal blocks plugs with a vertical connection orientation allowing space saving multiple row mounting on the PCB. These PCB terminal blocks feature a push in spring cage connection mechanism enabling easy insertion of the conductors. A screwdriver is used to open the clamp before insertion.

Features and Benefits

• Time saving push in connection
• Simple opening of clamp using screwdriver
• Vertical orientation for PCB space saving
• Defined contact force for long-term contact stability

Phoenix Contact 1-pin PCB Terminal Block, 7.5 mm Pitch - SPT 5/ 1-V-7.5 - 1719309

This Phoenix Contact terminal block lets you organise and secure wire connections on a PCB (printed circuit board). It has a push-in connection mechanism that needs low insertion force, making it quick and easy to fix conductors.
This unit has a space-saving vertical connection point that allows you to mount multiple rows on the PCB. The component's polyamide housing comes in the manufacturer's signature green colour and is resistant to abrasion and impact. As it's also able to withstand high temperatures, it's a versatile choice for use in demanding industrial environments.
For your peace of mind, the terminal block has undergone thorough safety testing. It's passed a glow-wire test and is flame retardant, so it's safe to use in electrical devices. You'll find it useful for securing wires to PCBs in automation equipment and vehicle control panels.

• Green colour
• Current rating of 41 A
• Female gender
• Through-hole mounting type
• 1 contact
• Pitch of 7.5 mm
• Spring-cage termination method
• Voltage rating of 1 kV
• Weight of 4.48 g

Phoenix Contact COMBICON 7.5mm Pitch PCB Terminal Blocks

Datasheet

Dimension Sheet - 1719309

Catalogue - Terminal Block
