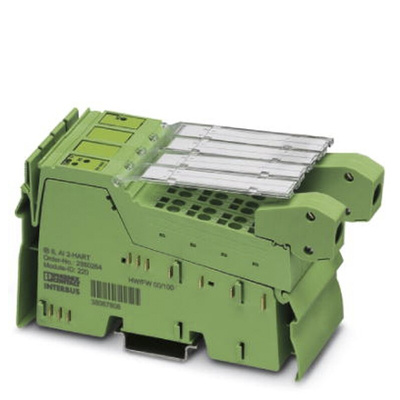

Inline, Analog input terminal, Analog inputs: 2, 4 mA ... 20 mA, 0 mA ... 25 mA, connection method: 2-conductor, transmission speed in the local bus: 500 kbps, HART functionality, HART protocol transmission, degree of protection: IP20, including Inline connectors and marking fields
A hand-held operator panel can be connected
Resolution depends on the representation format and the measuring range
Measured value acquisition with 16-bit resolution
Point-to-point and multi-drop connections possible
FDT/DTM support
Both channels preset to the 4 mA ... 20 mA measuring range and IB IL format
Measured values can be represented in three different formats
Polling and burst modes
Two differential signal inputs for current sensors
Connection of sensors in 2-conductor technology (active and passive sensors)
Current ranges: 4 mA ... 20 mA, 0 mA ... 25 mA
Transmission of the HART protocol with PCP
