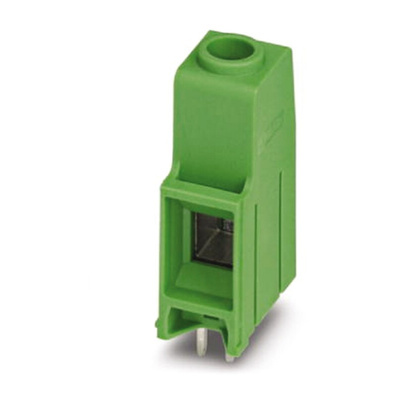

1993763, Phoenix Contact MKDS 10 HV/ 1-F-10.16 Series PCB Terminal Block, 1-Contact, 10.16mm Pitch, Through Hole Mount, Screw

Phoenix Contact COMBICON MKDS 10 Series 10.16 mm Pitch PCB Terminal Block

COMBICON MKDS 10 Series 10.16 mm pitch PCB terminal blocks with a side interlocking design enabling high density mounting. These PCB terminal blocks feature screw terminals and a tension sleeve and allow the connection of two conductors. An integrated protective guide prevents the conductor from being inserted incorrectly under the tension sleeve. A maximum contact force ensures that these connectors have a low temperature rise

Features and Benefits

• Allows connection of two conductors
• Screw terminals and tension sleeve
• Protective guide prevents misinsertion of conductor
• Maximum contact force and low temperature rise

Approvals

UL
