Banner Retroreflective Photoelectric Sensor, Block Sensor, 2 m Detection Range, Фотоэлектрический датчик

Mini-Beam Series

The MINI-BEAM2 series is just one-third the size of the original MINI-BEAM. With its impressive
sensing performance and smaller size the MINI-BEAM2 can be fitted inside machinery
where other self-contained photoelectric sensors will not be able to fit.
The set up configuration is extremely easy using the MINI-BEAM2’s push button.

Digital push-button sensitivity adjustment
Miniature plastic housing; M12 front "nose" mount or screw fixing
PNP complementary output
Multi-function LEDs for easy set-up and monitoring
Depth 23mm, height 20mm, width 8mm (body)
Full electrical protection
IP67 protection
Operating temperature range -20 to +55°C

Caution

Laser radiation is harmful to the human eye and under no circumstances should the laser beam be viewed directly or via optical instruments.

Supplied with

Mounting bracket

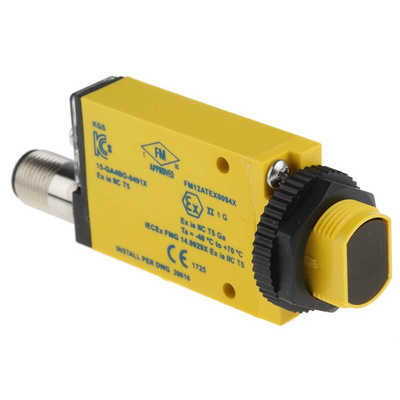

Banner Photoelectric Sensor, 50 to 2000mm Detection Range, 650nm Wavelength - MIAD9LVAGQ

Precisely pick out moving objects in your industrial equipment with this photoelectric sensor from Banner. It's a retro-reflective unit, so it packs an emitter and receiver into one device to save space and boost efficiency. Thanks to its polarised design, it resists the glare from shiny surfaces, making it useful with red or blue light sources. The durable thermoplastic housing protects this piece of kit from wear and impact for long-term performance in harsh environments. Its bright yellow colour makes it stand out from the crowd for ease of identification on your equipment.

Features & Benefits

• Wide detection range between 50 and 2000mm for versatility
• Red LED indicators for easy monitoring and troubleshooting
• M12 threaded connector for easy and speedy assembly
• Sensitivity is adjustable via a simple potentiometer for ease of use

Applications

• Marine engineering
• Material handling equipment
• Oil and gas plants

Is this sensor dustproof?

Yes, the unit's IP67 rating shows that it's fully protected against dust, as well as immersion in 1m of water for up to 30 minutes.
