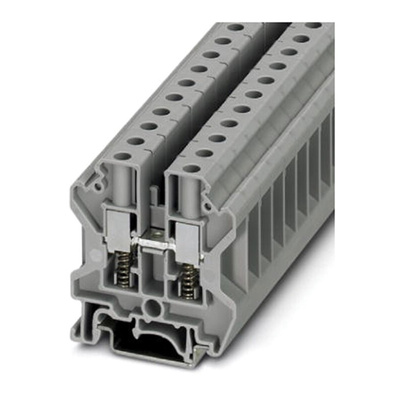

3070354, Phoenix Contact USST 10 Series Grey Feed Through Terminal Block, 0.5 → 16mm², Single-Level, Screw Termination

Phoenix Contact Feed-Through Terminal Block, 10mm² Nominal Cross Section, 12mm Stripping Length - USST 10 - 3070354

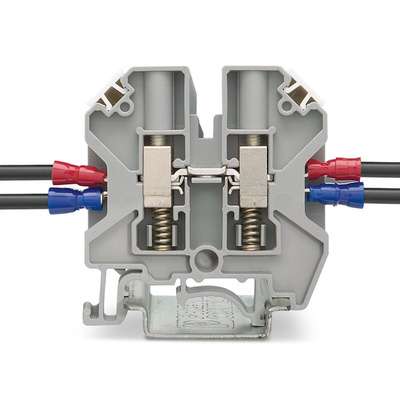

Need to make electrical connections in a flash? Choose this feed-through terminal block from Phoenix Contact. It's a breeze to use – just push one wire into its input connector and the other into the output, then tighten the screws to safely join the conductors.
For safety, the product is voltage-tested to withstand surges up to 9.8kV. Thanks to its wide operating temperature range of -60°C to +130°C, it's a reliable option for use in harsh conditions. A light weight of just 21.23g means your setup stays strain-free. Terminal blocks like this one are useful for joining multiple circuits in signalling and power applications, as well as industrial control and automation systems.

Features & Benefits

• Nominal ratings of 1,000V and 57A mean it's safe to use in powerful electrical systems
• DIN-rail mounting for simple and speedy setup
• Polyamide insulationresists chemical damage so protects against drops and splashes
• UL 94 V-0 flammability class means it stops burning in 10 seconds in the event of a fire
• Supplied in a box of 50 so you can wire up larger networks

Datasheet

Datasheet - 3070354

Line Drawing - 3070354
