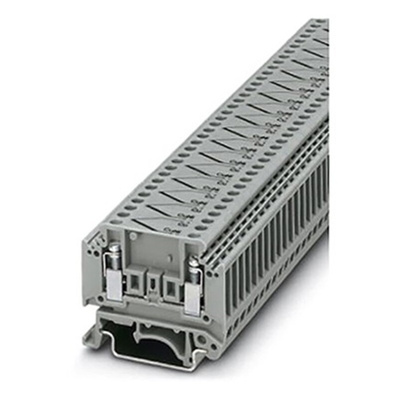

3100060, Phoenix Contact MTKD-CU/CUNI EX Series Grey Non-Fused Terminal Block, Single-Level, Screw Termination

Thermoelectric voltage terminal block pair, TC type T, nom. voltage: 400 V, nominal current: 1 A, connection method: Screw connection, number of connections: 4, number of positions: 2, cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, width: 10.4 mm, color: gray, mounting type: NS 35/7,5, NS 35/15, NS 32

These special terminal blocks are used to extend thermocouple equalizing conductors in corresponding measuring circuits

The equalizing conductors are made from materials which, up to temperatures of 200°C, have the same thermal characteristics as the corresponding thermocouples

Datasheet
