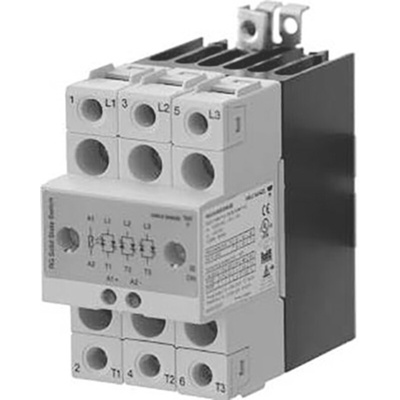

RGC3A60A25KKE, Carlo Gavazzi RGC Series Solid State Relay, 32 A Load, DIN Rail Mount, 660 V ac Load, 190 V dc, 275 V ac Control, Реле

Type RGC2 and RGC3, 3-Phase with Integrated Heatsink

The RGC2 and RGC3 type solid state relays have been designed to replace mechanical contactors especially when there is a high switching frequency. They are available with various options including either 2 or 3 pole. Switch ON occurs at the voltage zero cross and switch OFF occurs at the current zero cross. Control voltage presence is indicated by a green LED indicator. Output overvoltage protection comes in the form of an integrate varistor.

Features:
2-pole & 3-pole AC switching solid state contactors
Product width up to 70mm
Rated operational voltage: up to 600 V ac
Rated operational current: up to 75A ac
Control voltages: 5 to 32 V dc, 20 to 275 Vac (24 to 190 Vdc)
Motor ratings up to 11kW at 400 V ac, 25HP at 600 Vac
Integrated varistor protection on output
Optional monitoring for SSR and load malfunction (RGC..M)
EMR alarm output and auxiliary output (RGC..M)
Controlled fan operation for versions with integrated fan
100kA Short Circuit Current Rating according to UL508
DIN or panel mount

Standards

UL, cUL Listing

Proportional and Power

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
