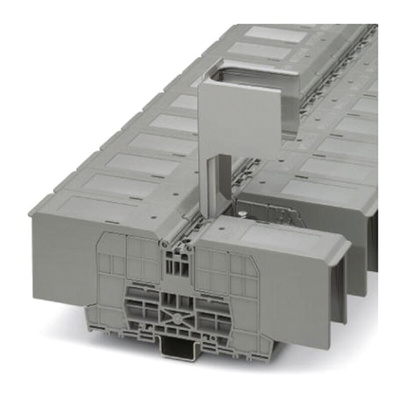

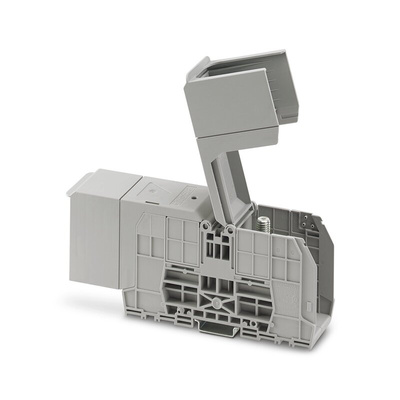

3247976, Phoenix Contact RBO 10-HC Series Grey Non-Fused DIN Rail Terminal, 6 → 150mm², Single-Level, Bolt Termination,

Phoenix Contact Non-Fused DIN Rail Terminal, 309A Current Rating, 8kV Rated Surge Voltage - RBO 10-HC - 3247976

When things get down to the wire, choose this single-level, non-fused DIN rail terminal from Phoenix Contact to safeguard your conductors. It helps protect two connections against unruly electrical surges to prevent equipment damage and unnecessary downtime.
Shocks are off-limits thanks to the hardwearing PA housing that insulates live wires, making the component touch-proof and safe to handle. This also blocks unwanted contact between neighbouring devices, ensuring each focuses on its own business without interference. Compact dimensions of 235 (L) x 41 (W) x 77mm (H) let you fit the unit easily into a tight space without breaking a sweat.
A bolt connection mechanism makes termination a breeze. Simply hook your ring cable nut, clip the cover in place and that's job done. With nominal voltage and current ratings of 1500V and 309A, you can use this block with a wide selection of operations such as energy management, telecommunications and HVAC systems.

• Shock resistance helps prevent accidental disconnection in heavy-duty settings
• RoHS compliance means the unit contains only negligible amounts of hazardous materials
• ATEX approved for safety in potentially explosive atmospheres

Tested for railway applications

Datasheet

Datasheet - 3247976

Installation Sheet - 3247976

Line Drawing - 3247976
