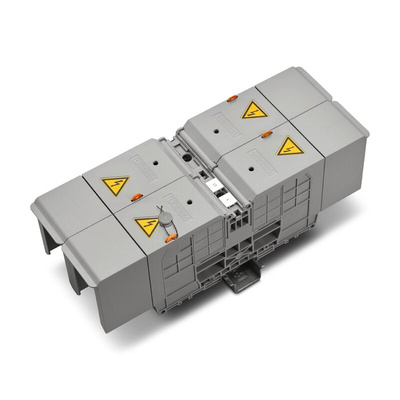

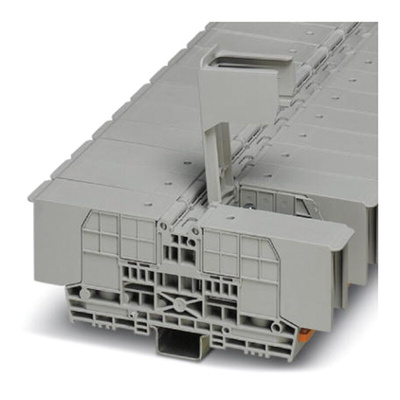

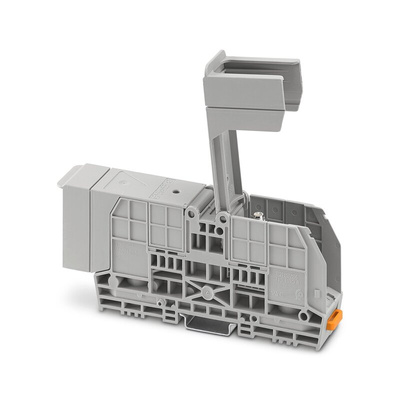

3247973, Phoenix Contact RBO 8-HC Series Grey Non-Fused DIN Rail Terminal, 6 → 70mm², Single-Level, Bolt Termination, ATEX

Phoenix Contact Non-Fused DIN Rail Terminal, 192A Current Rating - RBO 8-HC - 3247973

Make connections the easy way with this non-fused DIN rail terminal block from Phoenix Contact. It achieves a secure join with a bolt that's tightened in place over the two wires being connected. As this is a reliable and robust method, it's suitable for applications including industrial automation, power distribution and railway engineering.
As well as forming a connection, the block provides vital insulation to protect equipment and users. The insulation is made from nylon, so it's resistant to the corrosion and chemicals you'd expect in harsh industrial environments. Because it's DIN rail-mounted you can fit this unit into your existing setup in a snap.
The block has compact dimensions of 29 (W) x 184 (L) x 66mm (H), so it's handy when space on your DIN rail is at a premium.

Features & Benefits

• Single-level terminal block is suitable for one input and one output
• Compatible with cables between 6 and 70mm² CSA so it's a versatile solution
• Voltage rating of 1500V and rated surge voltage of 8kV means it's ideal for heavy-duty applications
