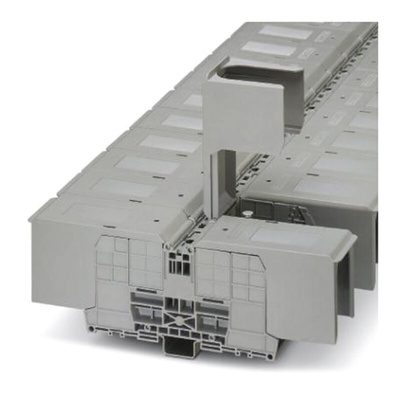

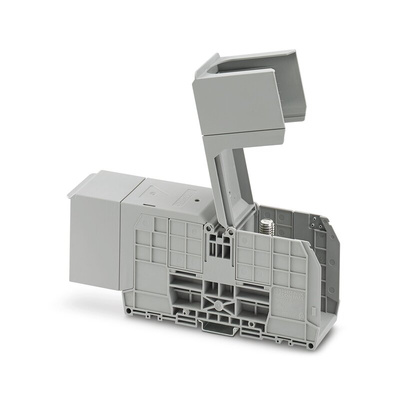

3247986, Phoenix Contact RBO 12-HC Series Grey Non-Fused DIN Rail Terminal, 10 → 240mm², Single-Level, Bolt Termination

Phoenix Contact Non-Fused DIN Rail Terminal, Bolt Termination, 415A Current Rating - RBO 12-HC - 3247986

Need secure and stable electrical connections? Leave nothing up to chance with this non-fused DIN rail terminal block from Phoenix Contact. It uses bolts to connect two wires, so it's quick and easy to use without special tools.
The block is DIN rail-mounted, so it clicks conveniently into place in your existing setup. PA housing offers insulation to protect staff and equipment from electrical hazards. A voltage rating of 1500V and a 415A current rating means it's ideal for high-power applications.
As you can use this product with cables with a CSA between 10 and 240mm², it's a versatile connection solution. You'll find blocks like th is commonly used in railway applications, mechanical engineering and industrial automation.

Features & Benefits

• Made from nylon, which is resistant to corrosion in humid settings
• Broad operating temperature range between -60°C and +130°C so it's suitable for harsh environments
• Rated surge voltage of 8kV means it's ideal for heavy-duty industrial applications
• Compact dimensions of 49 (W) x 265 (L) x 83.3mm (H) to slot neatly into crowded systems

Datasheet

Datasheet - 3247986

Application Note - Terminal Blocks

Instruction Sheet - 3247986

Line Drawing - 3247986
