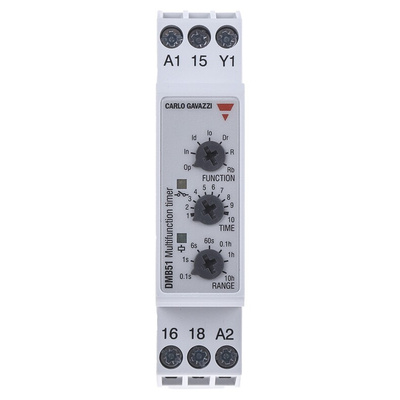

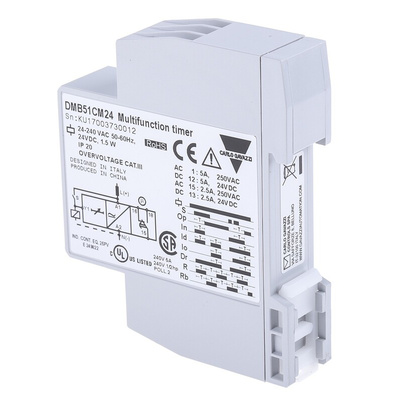

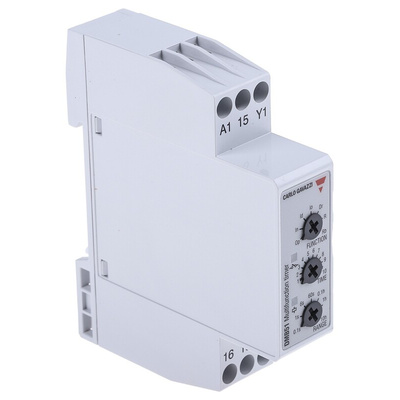

DMB51CM24, Carlo Gavazzi SPDT Multi Function Timer Relay, 24 → 240 V ac, 24 V dc 0.1 s → 100 h, DIN Rail Mount

Carlo Gavazzi Multi-function Timer Relay

The Carlo Gavazzi multi-function timer relay is compact, electromechanical equipment with high precision. It performs selectable functions like delay on, delay on release, double interval, interval, interval on trigger open, asymmetrical recycler off, and symmetrical recycler on first in the range of 0.1 seconds to 100 hours. This is easy to use and quick to configure. This provides a reliable timing solution that is suitable for back and front panel mounting. Its low cost and high performance make it ideal for a wide range of applications in process control environments.

Features and Benefits

7 selectable time ranges in the range of 0.1 seconds to 100 hour like 0.1 seconds to 1 second, 1 second to 10 seconds, 6 seconds to 60 seconds, 60 seconds to 600 seconds, 0.1 hours to 1 hour, 1 hour to 10 hours and 10 hours to 100 hours
Automatic and manual start options
7 selectable functions
2C/O SPDT contact configuration with relay output of 5A
For mounting on DIN rail
Repeatability of ≤ 0.2%
Supply voltage is 24VDC and 24VAC to 240VAC
LED status indication available to provide details of relay status and power supply ON
Supports PNP/NPN and Namur sensors
Setup made simple thanks to knob selection of time range and setting

Applications

Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control

Certifications

IEC 60664
IEC 60038
EN 60529
IP20 rated
UL approved
RINA certified
CSA certified
CE certified
IEC EN 60947
EN 61000-6-2
EN 61000-6-3
