EO1804PPAS-1, Carlo Gavazzi Diffuse Photoelectric Sensor with Barrel Sensor, 400 mm Detection Range, Фотоэлектрический датчик

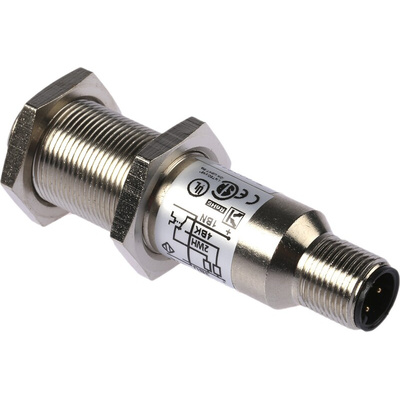

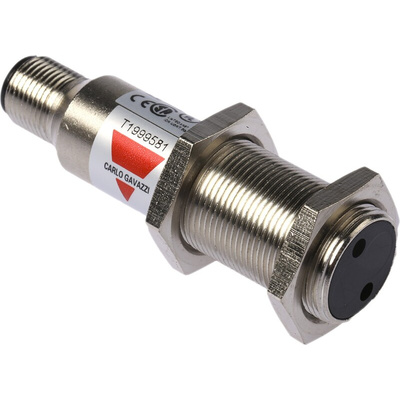

Type EO1804 Diffuse-reflective Photoelectric Sensor

The EO1804 type diffuse reflective photoelectric sensors have been designed for heavy duty applications and come in an IP67 rated, short M18 metal housing. Range is easily adjusted with a 270° single turn potentiometer. They are intended for applications where a basic sensor provides adequate performance. The output is a 4-wire complementary (NO and NC) output in NPN (current sinking) or PNP (current souring).

Range: 400 mm adjustable
Modulated, infrared light
Supply voltage: 10 to 40 V dc
Output: 200 mA NPN or PNP
Make and break switching function, LED indication
Protection: Reverse polarity, short-circuit, transients
High immunity to ambient light
Heavy duty M18 metal housing, IP67
Cable and plug versions

Carlo Gavazzi Photoelectric Sensors

Datasheet
