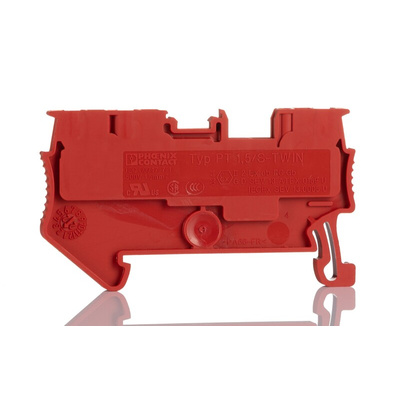

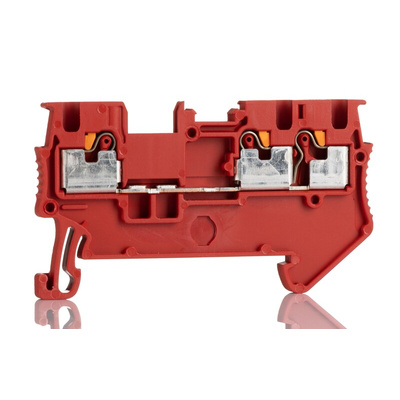

3208156, Phoenix Contact Red Feed Through Terminal Block, 0.14 → 1.5mm², Single-Level

Phoenix Contact Feed-Through Terminal Block, 17.5A Maximum Load Current, 3 Connections - PT 1,5/S-TWIN RD - 3208156

Get all wired up with this Phoenix Contact feed-through terminal block. Making up to three connections is simple. First, snap the device to your DIN rail, then push each wire into a terminal to achieve a secure fit. As it accepts conductors with cross sections ranging from 0.14 to 1.5mm², this is a versatile piece of kit.
The unit withstands temperatures from -60°C to +110°C, making it ideal for harsh work areas. Thanks to its small measurements of 54 (L) x 3.5 (W) x 30.5mm (H), it also squeezes into tight spaces. A nominal voltage rating of 500V lets you use it in powerful electrical systems. Products like this one are found in machine building and plant engineering processes, along with automated industrial applications.

• Voltage tested up to 6kV, so it withstands unplanned surges
• Strong polyamide insulation can take a knock
• Supplied in boxes of 50 to ensure you have plenty on hand
• Light net weight of 4.45g doesn't put pressure on your DIN rail
• Front connection style for easy access in awkward setups

Datasheet

Instruction Sheet - 3208156

Line Drawing - 3208156
