1899090, Phoenix Contact 5.08mm Pitch 13 Way Right Angle Pluggable Terminal Block, Feed Through Header, Panel Mount, Through, Клеммная колодка

8582557
Номер производителя: 1899090Производитель: Phoenix Contact
Цена за шт. (норма упаковки 50 шт)
2296.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Feed-through header, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 13, Number of rows: 1, Number of positions per row: 13, number of connections: 13, product range: DFK-MSTBA 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.2 mm, Stecksystem: CLASSIC COMBICON, Locking: Screw locking, type of packaging: packed in cardboard

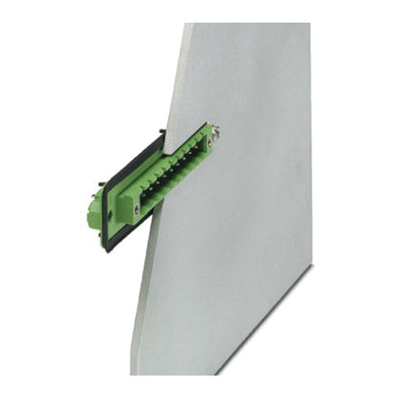

Headers for assembly in a device/housing panel
Mounting from the inside of the device through the housing panel

Техническая спецификация
pdfDatasheet
