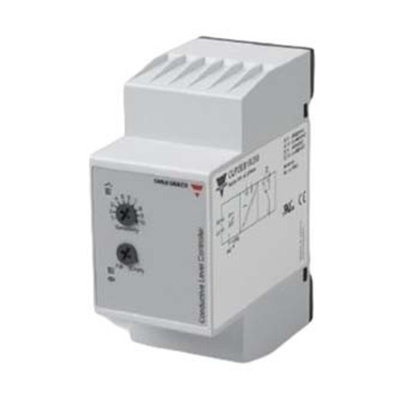

Carlo Gavazzi Level Controller

The Carlo Gavazzi conductive microprocessor-based level controller is designed for liquids with a wide sensitivity range (like sewage water, chemicals, saltwater etc.). This controller has a separate output for alarm indication in case of a tank running dry or if an overflow condition occurs. Liquid level relays are used to monitor the levels of conductive liquids and are available in Up/Down, Minimum, Maximum, and Fill/Empty variations. Liquid level relays are straightforward to install and safe to use. It has a supply voltage of 230VAC.

Features and Benefits

Conductive level controller
Adjustment of sensitivity
Low-voltage AC electrodes
Output 2x8A/250 VAC DPDT relay
LED indication for output ON and power ON
Sensitivity adjustment from 250ohm to 500Kohm
Easy installation on DIN rails or with an 11-pin circular plug
11-pin circular plug mount
Relay output is 0.5Hz

Applications

Liquid level relays (conductive level sensors) are used in a wide variety of applications, including wastewater management and the monitoring and management of corrosive liquid media.
Designed specifically to provide monitoring and control of liquid levels, Protection of pumps against dry running, ability to detect liquid leaks in a system, control of media mixing ratios and control of liquid levels.

Certifications

CE certified
CSA certified
